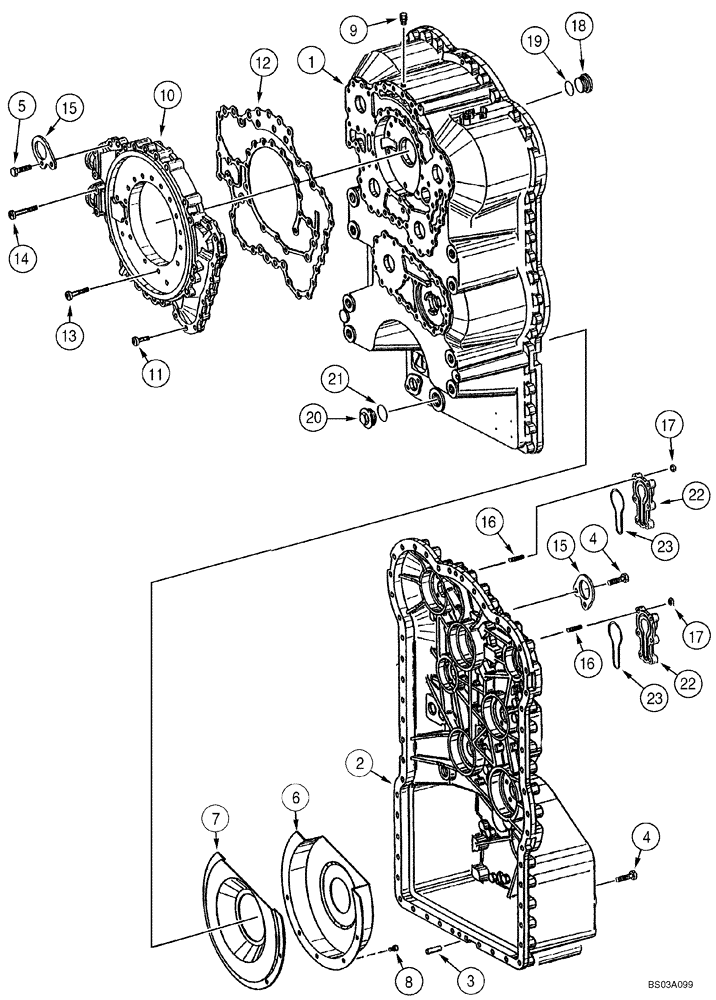

Запчасти Case 721E (06-05) - TRANSMISSION ASSY - HOUSING - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

8500050

TRANSMISSION

See Figures 06-04 - 06-20, 07-01; Prior To P.I.N. N8F203816

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION ASSY - HOUSING - PRIOR TO P.I.N. N8F203816, Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

8605548

REMAN-TRANSMISSION

721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

8605547

CORE-TRANSMISSION

Return Number

1шт.

1

8604689

HOUSING

Front

1шт.

2

8603729

HOUSING

Rear

1шт.

3

8604712

DOWEL

M6 x 40

2шт.

4

8603466

SCREW,M10 x 50mm

M10 x 50

53шт.

5

8603469

SCREW,Hex, M10 x 40mm

M10 x 40; 8,8

2шт.

6

8603468

GUARD

Gear

1шт.

7

8603467

SCREEN

1шт.

8

8603306

SCREW,M8 x 12mm

M8 x 12

7шт.

9

8603214

BREATHER

1шт.

10

87712648

HOUSING

Oil Supply; Replaces 8603307

1шт.

11

8603308

SCREW

M8 x 30;10,9

15шт.

12

8603309

GASKET

1шт.

13

8603310

SCREW,M8 x 45mm, Cl 10.9

M8 x 45; 10,9

21шт.

14

8603311

SCREW

M8 x 60; 10,9

4шт.

15

8603316

PLATE

2шт.

16

8603314

STUD

M8 x 25

12шт.

17

8603315

NUT

12шт.

18

8603357

PLUG

Incl. 19

1шт.

19

8603358

O-RING,2mm Thk x 13mm ID

1шт.

20

8603319

PLUG

Incl. 21

1шт.

21

8603318

O-RING

1шт.

22

8603312

COVER

Incl. 23

2шт.

23

8603313

O-RING

2шт.

24

8603779

VALVE PRESSURE RELIE

Not Illustrated

1шт.
