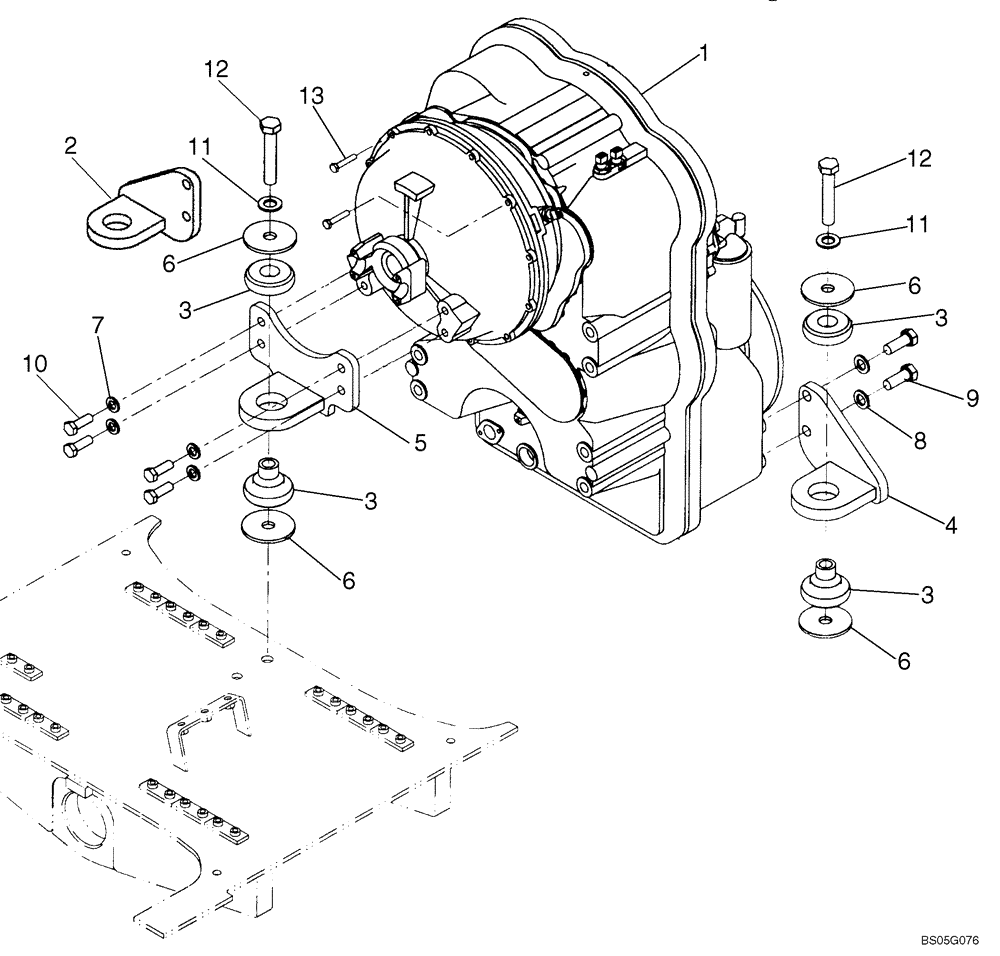

Запчасти Case 721E (06-01) - MOUNTING - TRANSMISSION (06) - POWER TRAIN

1

8500050

TRANSMISSION

See Figures 06-04 - 06-20, 07-01; Prior To P.I.N. N8F203816

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, P.I.N. N8F203816 - N8F204594, (8/06-), Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

1

8605548

REMAN-TRANSMISSION

721D, Model No. 4WG190, Prior To P.I.N. N8F204816, Stock No. 4657 024 030

1шт.

1

8605547

CORE-TRANSMISSION

Return Number

1шт.

1

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, P.I.N. N8F203816 - N8F204594, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

1

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

2

8500093

BRACKET

Left Hand

1шт.

3

361187A1

ISOLATOR

3шт.

4

8500094

BRACKET

Right Hand

1шт.

5

8500096

BRACKET

Top

1шт.

6

379611A1

WASHER

6шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

10

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

11

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

3шт.

12

827-22120

BOLT,Hex, M22 x 2.5 x 120mm, Cl 10.9

3шт.

13

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.
