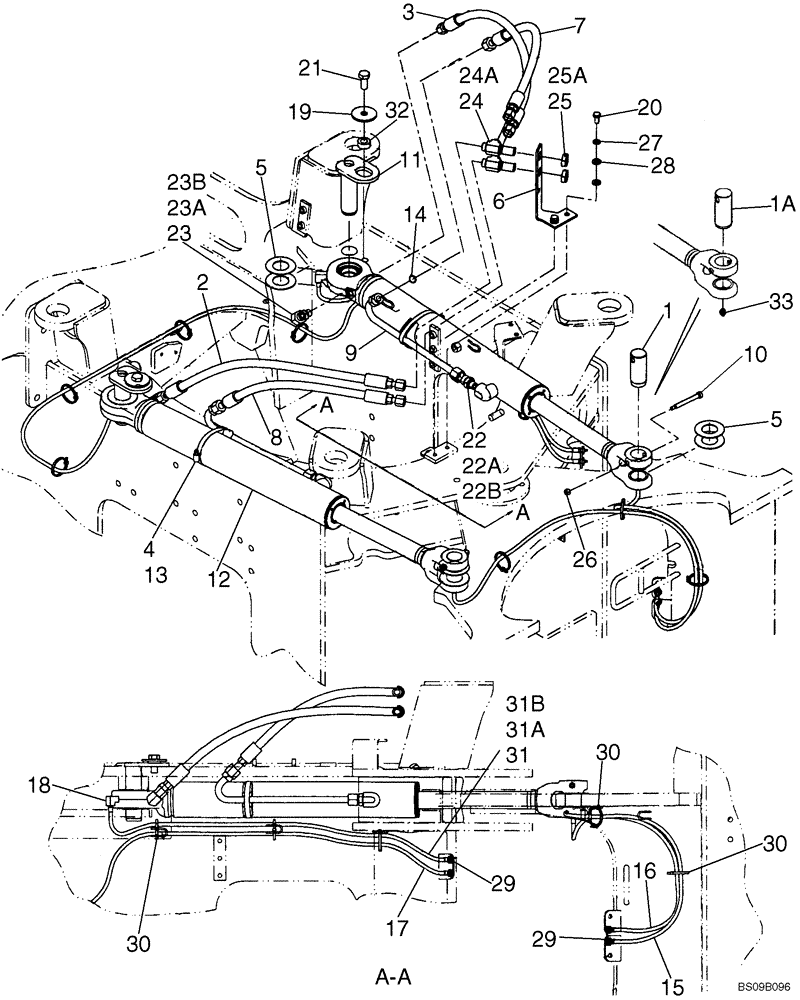

Запчасти Case 721E (05-10) - STEERING, STANDARD - HYDRAULICS - CYLINDER (05) - STEERING

1

8500227

PIN,40mm OD x 95mm L

Front Chassis; Models With Remote Grease Lines; If Used

2шт.

1a

87559561

PIN,40mm OD x 95.1mm L

Front Chassis; Models W/Out Remote Grease Lines; If Used

2шт.

2

87519795

HOSE ASSY.

752 mm (30 in); Steering Cylinder; Models Without Joystick Steering

1шт.

3

8500460

FLEXIBLE HOSE

872 mm (34 21/64 in); Left Side Base; Models Without Joystick Steering

1шт.

4

8500483

BLOCK

2шт.

5

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

41 x 76 x 1,5 mm

8шт.

6

8602342

BRACKET

Replaces 8500482; Bulkhead

1шт.

7

8602589

FLEXIBLE HOSE

715 mm ( 28 9/32 in); Left Side Rod

1шт.

8

8602590

FLEXIBLE HOSE

555 mm (21 27/32 in); Right Side Rod

1шт.

9

8602591

HYD TUBE

Steering Cylinder

2шт.

10

87308835

WASHER

If Used

2шт.

11

87351646

PIN,39.96mm OD x 141mm L

Rear Chassis

2шт.

12

87452362

STEERING CYLINDER

Piston Flange 7.19mm Thick; See Figure 05-15

2шт.

12

87452362R

REMAN-HYD CYLINDER

721E WHEEL LOADER TIER 3 (NA), Piston Flange 7.19mm Thick (8/06-)

2шт.

12

87452362C

CORE-HYD CYLINDER

Return Number

2шт.

13

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

15

313682A1

FLEXIBLE HOSE

1320 mm (51 31/32 in); Grease; If Used

1шт.

16

313683A1

FLEXIBLE HOSE

855 mm (33 21/32 in); Grease; If Used

1шт.

17

318013A1

FLEXIBLE HOSE,4.8mm ID x 2723mm L

2723 mm (107 13/64 in); Rear Trunnion Grease

1шт.

18

328082A1

ELBOW

90 Degree

2шт.

19

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

20

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

21

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

22

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 22A, 22B

2шт.

22a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

22b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 23A, 23B

2шт.

23a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

23b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 24A

2шт.

24a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

3шт.

25

701-903

NUT,13/16" - 16

Incl. 25A

2шт.

25a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

If Used

2шт.

27

892-11010

LOCK WASHER,M10

2шт.

28

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

29

F53473

LOCK NUT,1/8-27 NPSM

2-4шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

7-10шт.

31

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (40 63/64 in); Grease; Incl. 31A, 31B

1шт.

31a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

31b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

32

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Models W/Out Remote Grease Lines

2шт.
