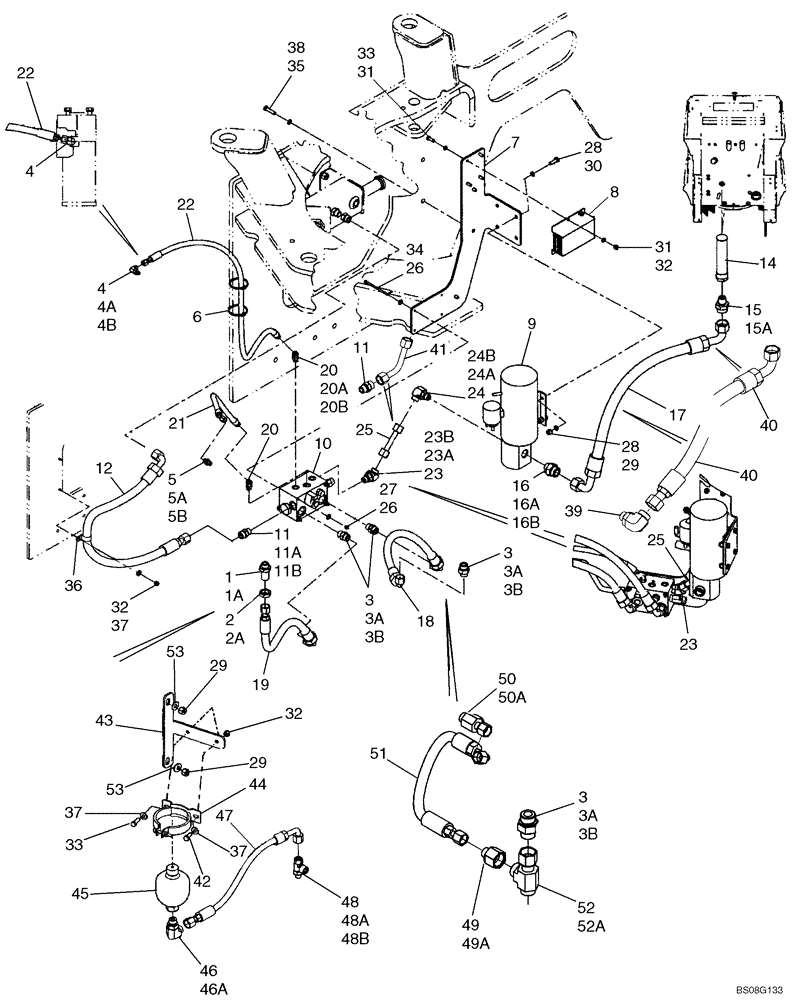

Запчасти Case 721E (05-09) - STEERING - HYDRAULICS - AUXILIARY (05) - STEERING

1

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 1A

1шт.

1a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

2

701-919

BHD LOCK NUT,1" - 14

Incl. 2A

1шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

3

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 3A, 3B

3шт.

3a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 4A, 4B

1шт.

4a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 5A, 5B

1шт.

5a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

12шт.

7

87346069

BRACKET

1шт.

8

8603171

MODULE

Auxillary Steering

1шт.

9

87581480

ELECTRIC PUMP

Auxiliary Steering; Replaces 380013A1; See Figure 05-16

1шт.

10

87609806

MANIFOLD

Auxillary Steering; Replaces 87341296; See Figure 05-19

1шт.

11

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 11A, 11B

2шт.

11a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

11b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

12

87563047

HOSE

Auxiliary Tank

1шт.

14

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

15

87433494

HYD CONNECTOR

Straight Thread ORFS To NPT; Incl. 15A

1шт.

15a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

16

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 16A, 16B; If Used

1шт.

16a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

16b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

17

87521826

HOSE ASSY.

Auxiliary Suction; 833mm ( 33 in ); If Used

1шт.

18

87569920

HOSE ASSY.

Steering Pressure;850mm ( 33-1/2 in )

1шт.

19

87521824

HOSE ASSY.

Steering Pressure; 1127mm ( 41-1/3 in )

1шт.

20

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 20A, 20B

2шт.

20a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

20b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

87373694

HOSE ASSY.

Load Sense; 752mm ( 30 in )

1шт.

22

87519796

HOSE ASSY.

Steering Load Sense; 1681mm ( 66in )

1шт.

23

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 23A, 23B; If Used

1шт.

23a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

23b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

24

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 24A, 24B

1шт.

24a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

24b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

8500249

HYD TUBE

Auxiliary Pressure; If Used

1шт.

26

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

27

832-10406

NUT,M6 x 1, Cl 8

4шт.

28

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

4-6шт.

30

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

34

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

4шт.

35

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

36

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

37

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1-4шт.

38

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

3шт.

39

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 39A, 39B; If Used

1шт.

39a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal; Not Illustrated

1шт.

39b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal; Not Illustrated

1шт.

40

87592639

HOSE ASSY.

Auxiliary Suction; 818mm (32 - 3/16 in); If Used

1шт.

41

87591383

TUBE,13.11 mm ID x 15.88 mm OD x 98.8, 80.9 mm L

Auxiliary Pressure; If Used

1шт.

REF

INSTRUCTION

THE FOLLOWING PARTS MAY OR MAY NOT BE USED

1шт.

42

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

43

87741113

BRACKET

Aux. Steering Accumulator Mounting

1шт.

44

87750434

CLAMP

Aux. Steering Accumulator

1шт.

45

87746283

ACCUMULATOR

Auxiliary Steering

1шт.

46

87725875

FITTING

Incl. Ref. 46A

1шт.

46a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

47

84243206

HOSE ASSY.

Aux. Steering Accumulator; 531mm (20.91 in)

1шт.

48

87725860

FITTING

With Orifice For Steering Pressure Switch, See Fig. 04-17; Incl. Refs. 48A, 48B

1шт.

48a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

48b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

49

87612571

FITTING

Incl. Ref. 49A

1шт.

49a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

50

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 50A

1шт.

50a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

51

87367960

HOSE ASSY.

Priority; 356 mm (14 - 1/64 in)

1шт.

52

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. Ref. 52A

1шт.

52a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

53

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
