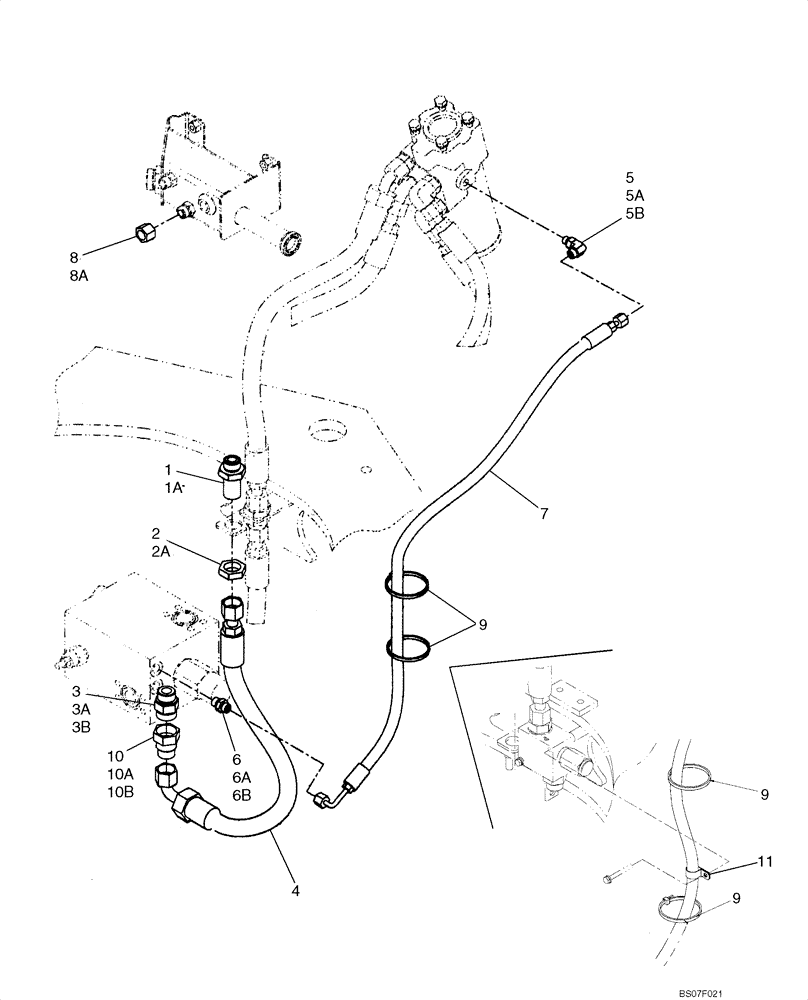

Запчасти Case 721E (05-08) - STEERING - HYDRAULICS (05) - STEERING

REF

INSTRUCTION

STANDARD STEERING

1шт.

1

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 1A

1шт.

1a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

2

701-919

BHD LOCK NUT,1" - 14

Incl. 2A

1шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

3

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl. 3A, 3B

1шт.

3a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

87372968

HOSE ASSY.

597 mm (23-1/2 in); Steering Supply

1шт.

5

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 5A, 5B

1шт.

5a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 6A, 6B

1шт.

6a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

87519797

HOSE ASSY.

988mm (39in); Steering Load Sense

1шт.

8

701-906

CAP,1" - 14

Incl. 8A

1шт.

8a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

2шт.

10

201-124

REDUCER,1"-14 Male x 1 3/16"-16 Fem, ORFS

1шт.

10a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

If Used

1шт.
