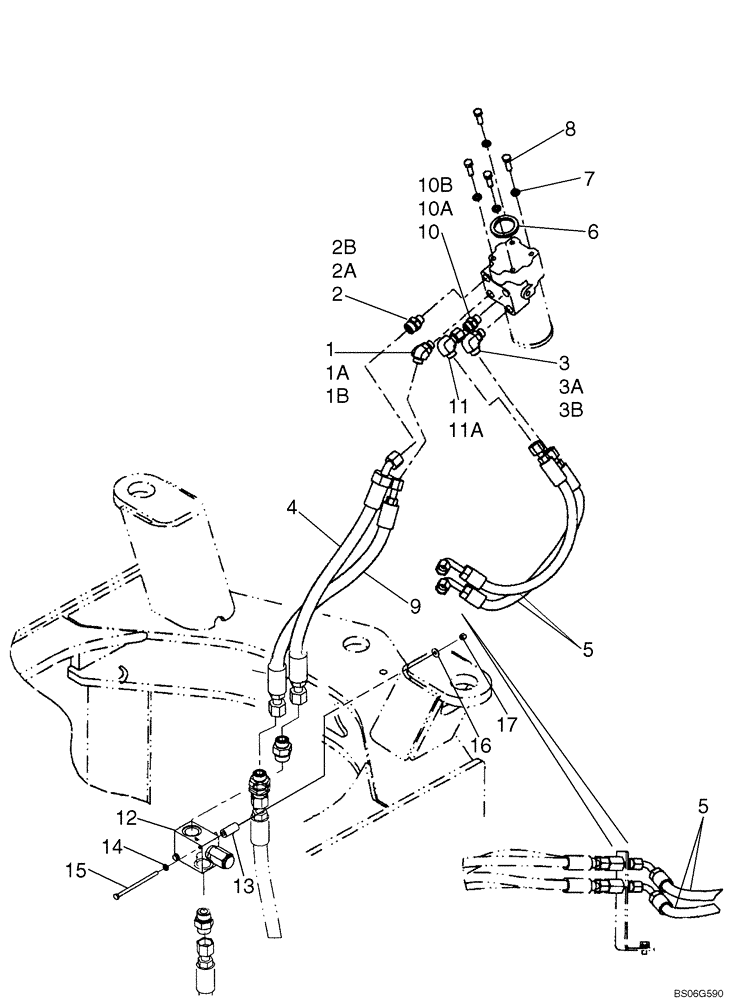

Запчасти Case 721E (05-07) - STEERING - HYDRAULICS (05) - STEERING

REF

INSTRUCTION

STANDARD STEERING VALVE INSTALLATION

1шт.

1

700-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 1A, 1B

2шт.

1a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

1b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

2

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 2A, 2B

2шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 3A, 3B

2шт.

3a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

87519793

HOSE ASSY.

Steering Return; 599mm (23-1/2 in )

1шт.

5

87385246

HOSE ASSY.

Steering Cylinder; 569mm (22-1/2 in )

2шт.

6

76043957

GASKET

Steering Orbital

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

9

87394744

HOSE ASSY.

Steering Supply; 611mm (24 in )

1шт.

10

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 10A, 10B

1шт.

10a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 11A

2шт.

11a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

12

87427823

VALVE PRESSURE RELIE

1шт.

13

87563044

SPACER,8mm ID x 16mm OD x 35mm L

SPACER

2шт.

14

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

15

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

If Used

2шт.

15

827-6100

BOLT,Hex, M6 x 100mm, Cl 10.9

If Used

2шт.

16

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

17

832-10406

NUT,M6 x 1, Cl 8

2шт.
