(05-02A) - CAB/CANOPY - STEERING COLUMN (87497543)

Запчасти Case 721E (05-02A) - CAB/CANOPY - STEERING COLUMN (87497543) (05) - STEERING

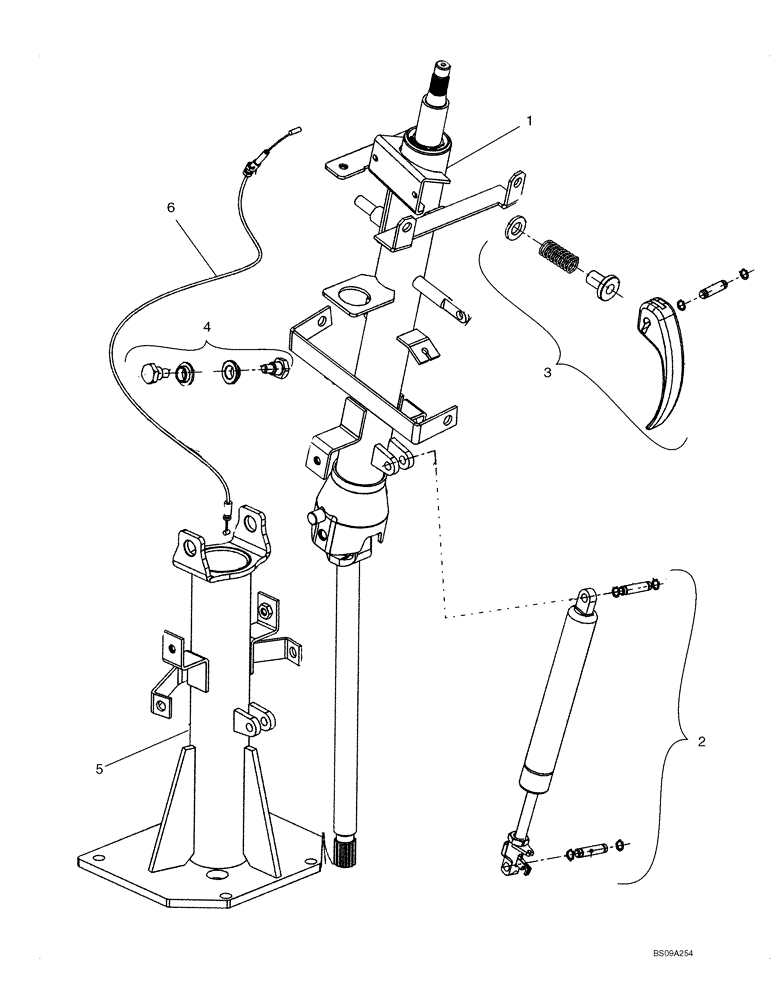

Схема запчастей Case 721E - (05-02A) - CAB/CANOPY - STEERING COLUMN (87497543) (05) - STEERING
6
1
4
3
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

76303625

STEERING COLUMN

STEERING COLUMN, Incl. Refs. 1 - 6; Component Parts Not Serviced Individually, Order Kits

1шт.

1

84177064

REPAIR KIT

KIT, Upper Column and Shaft Assy.

1шт.

2

84177065

REPAIR KIT

KIT, Gas Spring (Mounting pins not included)

1шт.

3

84155696

REPAIR KIT

KIT, Lever

1шт.

4

84155697

REPAIR KIT

KIT, Pivot

1шт.

5

84155699

HOLDER

KIT, Lower Column, Support Assy.

1шт.

6

84155700

CABLE

KIT, Cable, Gas Strut Activator

1шт.
