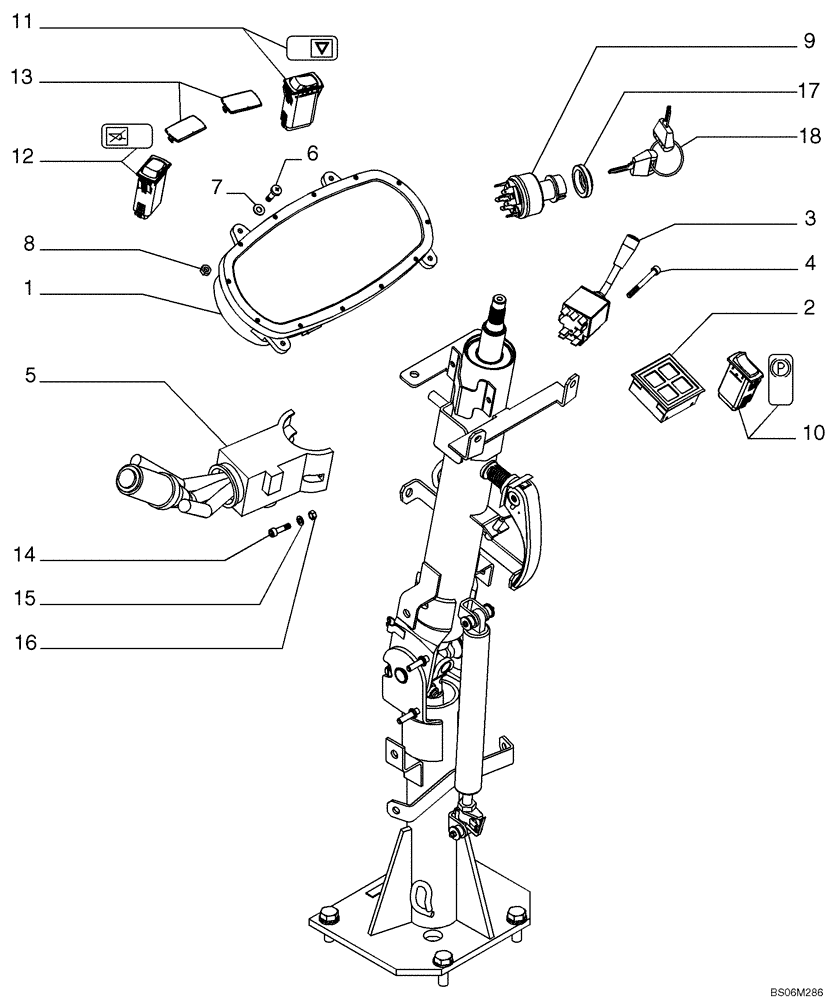

Запчасти Case 621E (04-15) - ELECTRICAL - STEERING COLUMN / INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

87372814

INSTRUMENT CLUSTER

Case

1шт.

87372814R

REMAN-INSTR CLUSTER

621E TIER 3 (8/07-)

1шт.

87372814C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

87372804

BOX

Key

1шт.

3

389487A1

LIGHT SWITCH

1шт.

4

14304731

SCREW,M5 x 50mm, Cl 10.9

2шт.

5

238270A1

CONTROL

Selector

1шт.

238270A1R

REMAN-JOYSTICK

621E - WHEEL LOADER TIER 3 (NA) (8/07-)

1шт.

238270A1C

CORE-JOYSTICK

Return Number

1шт.

6

13272111

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

4шт.

7

14496201

WASHER,M4 x 9

4шт.

8

10794011

NUT,M4, Cl 8

4шт.

9

282775A1

IGNITION SWITCH

Incl. Refs. 17, 18

1шт.

10

374424A2

PARK BRAKE SWITCH

Parking Brake

1шт.

11

374426A2

SWITCH

Hazard

1шт.

12

374434A2

SWITCH

Pilot Control

1шт.

13

86000535

PLUG,1.427" x .62", Plastic

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW, M5 x 20

2шт.

15

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

4шт.

16

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

4шт.

17

NSS

NOT SOLD SEPARAT

Ignition Switch Cap

1шт.

18

1964831C2

IGNITION KEY

Padded

1шт.
