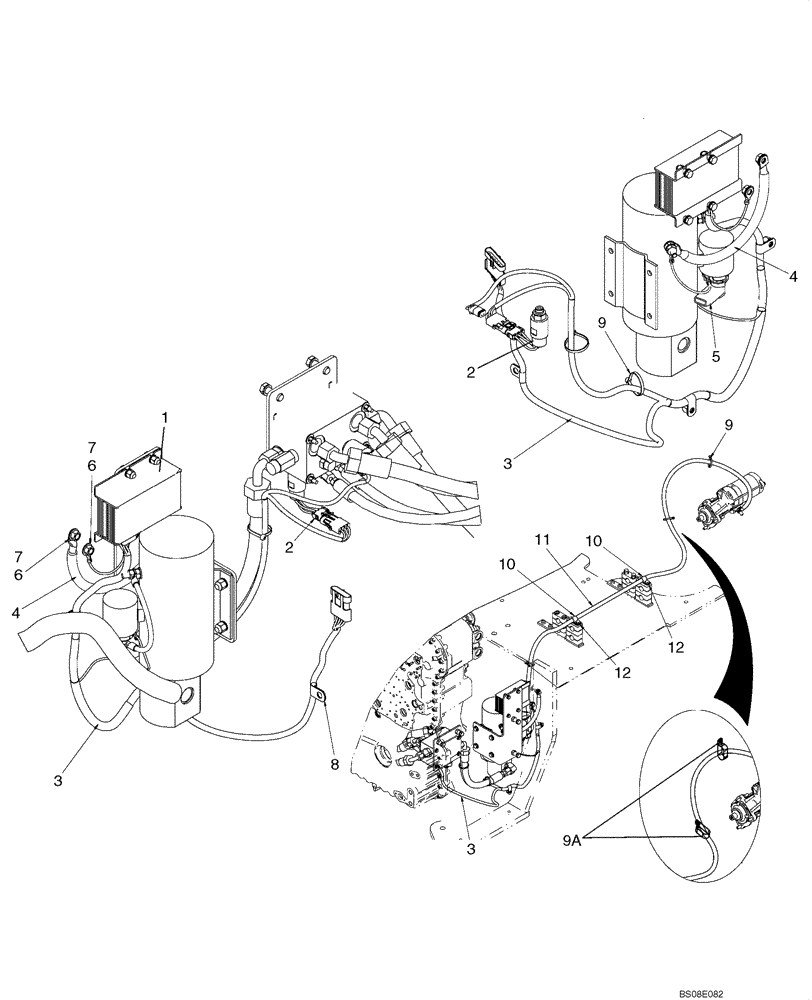

Запчасти Case 621E (04-12) - HARNESS - STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS

1

8603171

MODULE

Auxiliary Steering

1шт.

2

398888A1

PRESSURE SWITCH

Auxiliary Steering Pressure Switch

1шт.

3

87653924

HARNESS

Secondary Steering Module, Serial Range: -N9F208046

1шт.

3

84217687

HARNESS

Auxiliary Steering, Not shown, See Fig 04-12A, Start Serial: N9F208046

1шт.

4

L129707

NEG BATTERY CABLE

1шт.

5

L126713

BOOT

Electrical

1шт.

6

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

7

253347A1

NUT,Hex, M10 x 1.5

2шт.

8

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4-6шт.

9a

9603626

CLAMP

Double P; If Used

2шт.

10

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

11

87600841

CABLE

Auxiliary Steering

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
