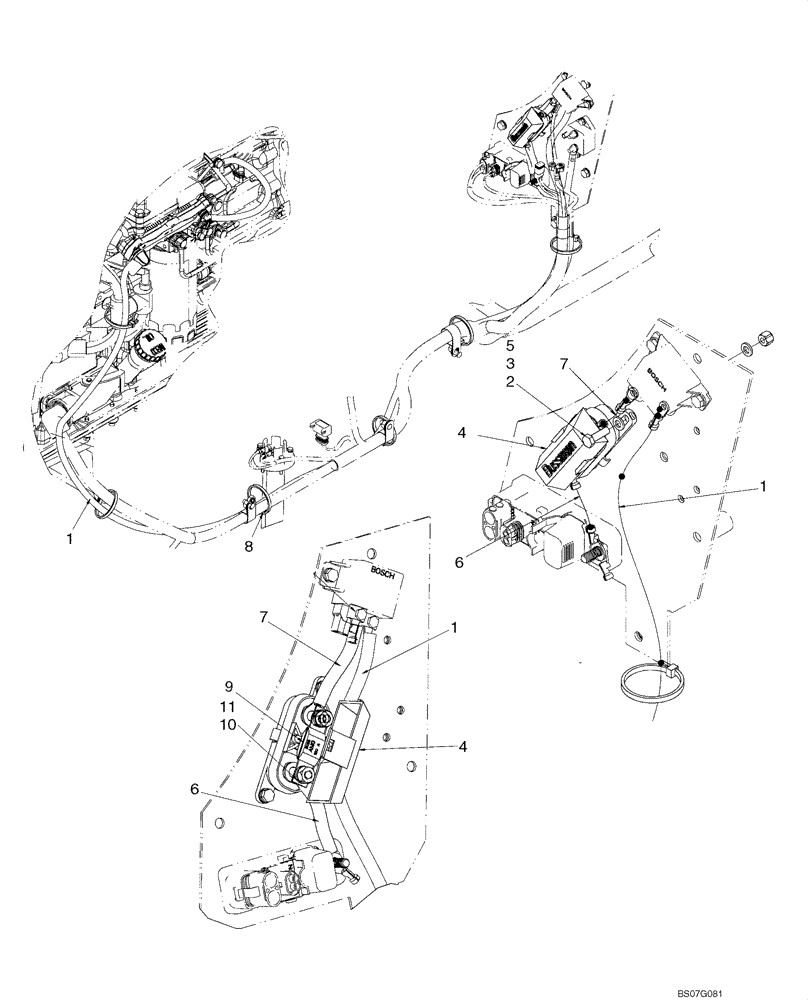

Запчасти Case 621E (04-11) - HARNESS - GRID HEATER (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

GRID HEATER CABLES, FUSE BOX

1шт.

1

87354000

CABLE,2135mm L

Grid Heater; Power

1шт.

2

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

3

832-10406

NUT,M6 x 1, Cl 8

2шт.

4

440038A1

JUNCTION BLOCK

Fuse

1шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

6

87350062

CABLE

Grid Heater B+

1шт.

7

87348713

CABLE

Grid Heater

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Wire Tie

6шт.

9

8501311

FUSE,150A, Megaval

150 Amp

1шт.

10

892-11008

LOCK WASHER,8mm ID

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
