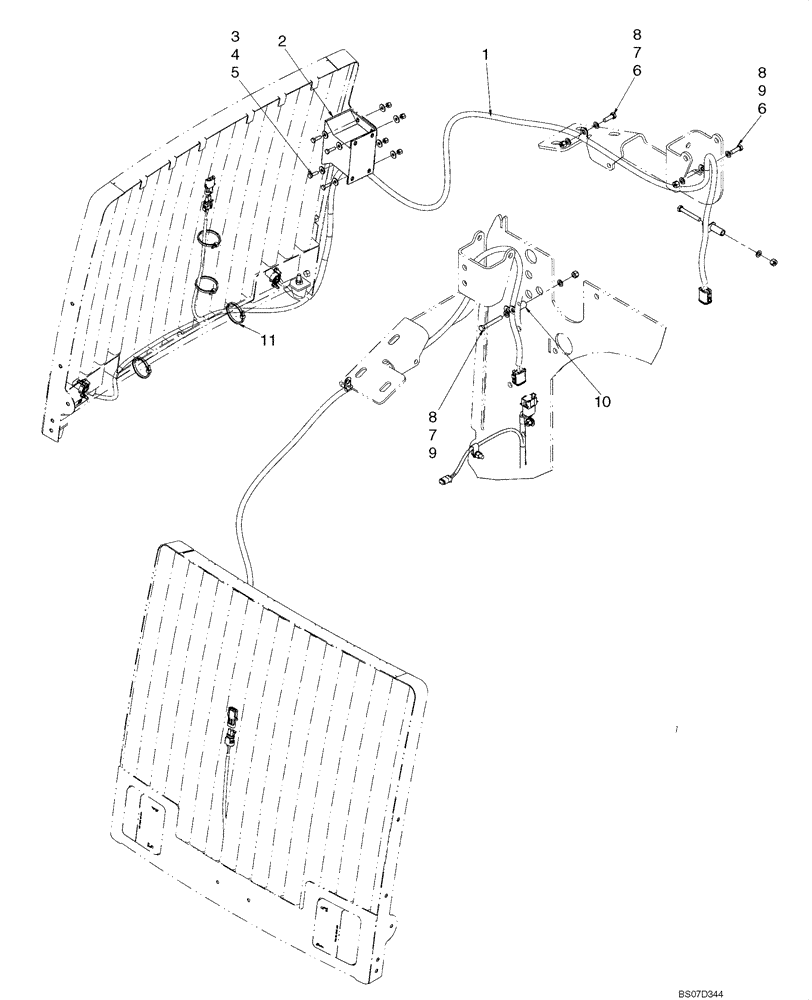

Запчасти Case 621E (04-09) - HARNESS, HOOD - ALARM, BACKUP (04) - ELECTRICAL SYSTEMS

1

87613715

WIRE HARNESS

Hood

1шт.

2

D121972

ALARM

Back-Up, See 2A

1шт.

2a

D103361

KIT

Alarm, Serial Range: Subbed-Components

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

9

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

10

L126936

SPACER

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.
