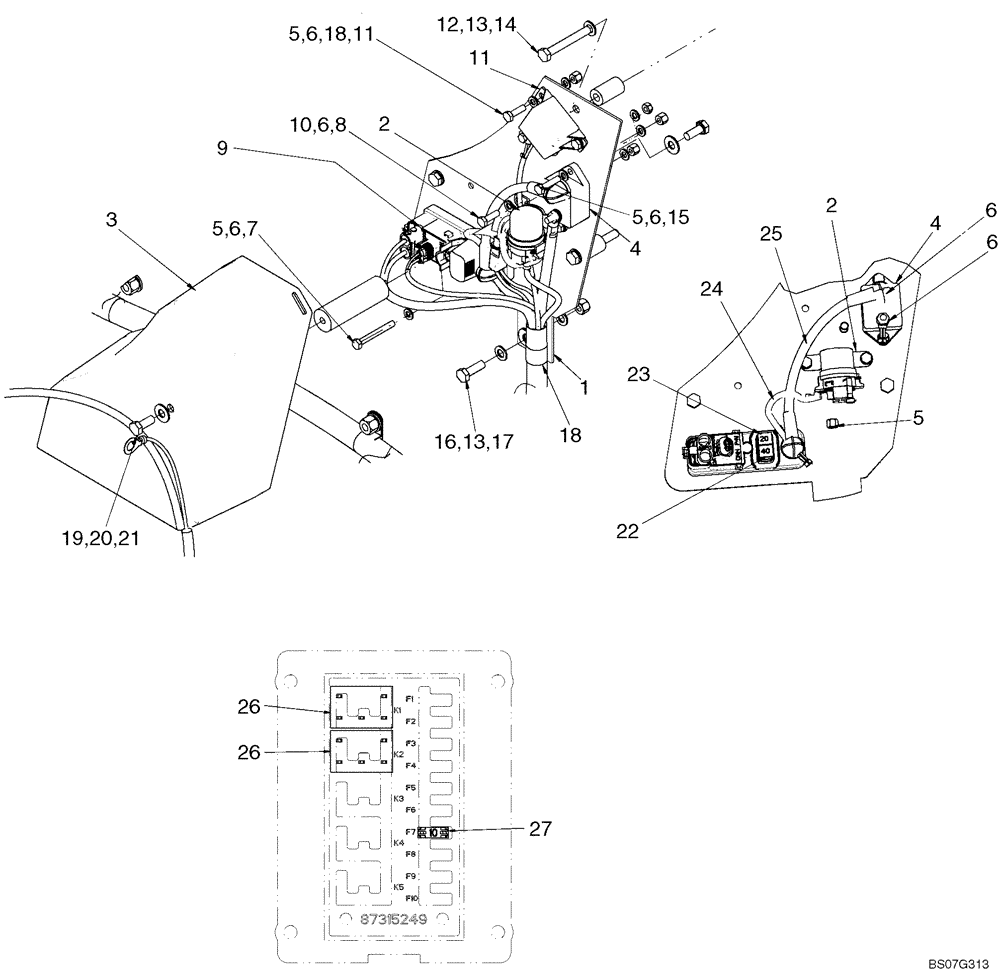

Запчасти Case 621E (04-07) - HARNESS, ENGINE - FUSES AND RELAYS (04) - ELECTRICAL SYSTEMS

1

87348711

PLATE

Electrical Mounting

1шт.

2

87351908

SOLENOID SWITCH

1шт.

3

87353999

COVER

Relay

1шт.

4

87315269

BREAKER

105A Auto Reset; If Used

1шт.

5

832-10406

NUT,M6 x 1, Cl 8

5-7шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10-18шт.

7

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

1шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

9

87318627

MODULE

Power Relay Module

1шт.

10

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

11

1546485C1

RELAY,24V

Grid Heater

1шт.

12

82024562

SPACER,8.5mm ID x 18mm OD x 31.6mm L

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

3шт.

15

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

If Used

2шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

18

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

19

404635A1

SPACER

1шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

21

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

22

87327346

FUSE,40A, Green

32V, 20A

1шт.

23

87327335

FUSE,20 Amp

32V, 20A

1шт.

24

87350066

CABLE

Starter Relay

1шт.

25

87350064

CABLE

Cab, B+; If Used

1шт.

26

87312626

RELAY,24V

Micro 5-Pin, 280 Series

2шт.

27

121412A1

FUSE,10A, Mini, Red

1шт.
