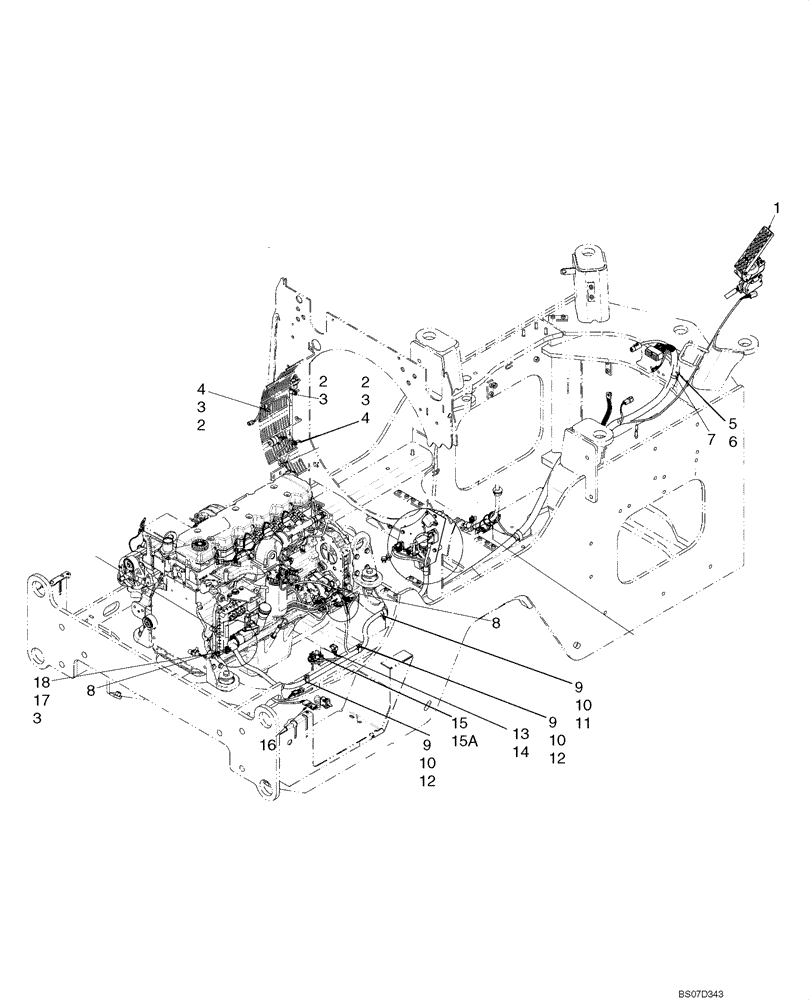

Запчасти Case 621E (04-06) - HARNESS, ENGINE - THROTTLE CONTROL (04) - ELECTRICAL SYSTEMS

1

87696524

THROTTLE

Engine; Replaces 87360870

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

832-10406

NUT,M6 x 1, Cl 8

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

7

515-21302

CLAMP,1 3/16", Insul, 1/4" Bolt

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

5шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

11

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

12

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

13

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

If Used

5шт.

13

87733381

SCREW,Hex, #10 x 1 1/4", Gr 5

Hex, #10-24 x 1-1/4; If Used

5шт.

14

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

15

87542710

SENDER UNIT

Fuel, Incl. Ref. 15A; See Figure 03-04

1шт.

15a

87617083

KIT

Nut Pack; Fuel Sender

1шт.

16

87350087

SWITCH

Hood Lift

1шт.

17

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

18

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.
