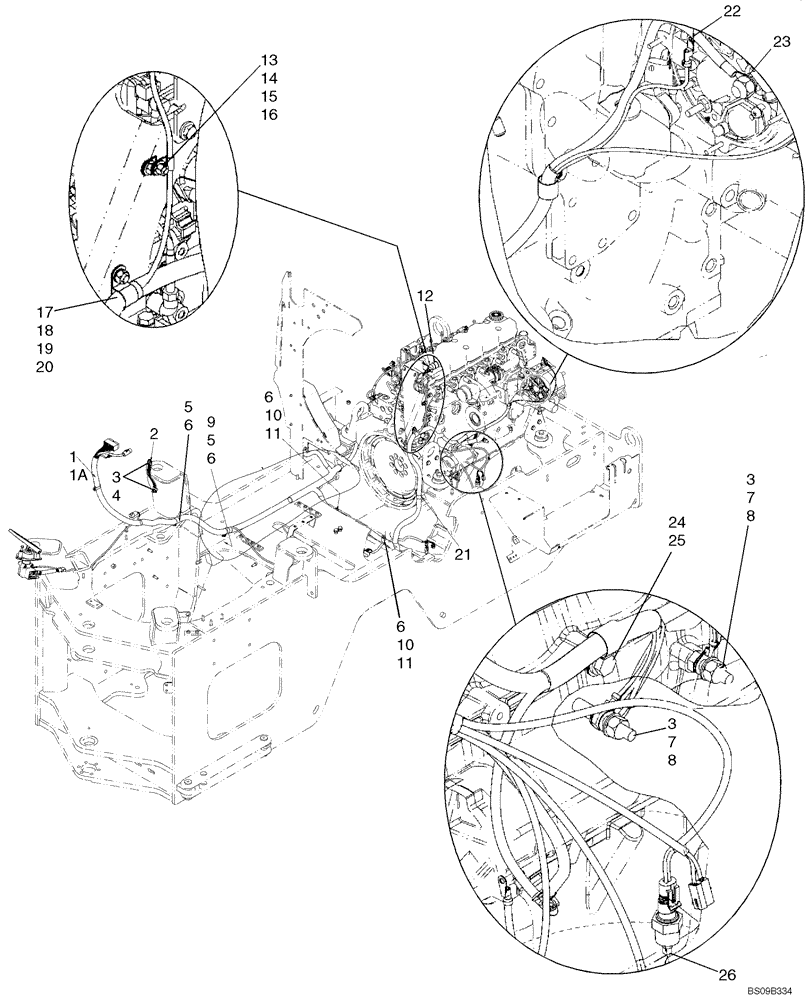

Запчасти Case 621E (04-05) - HARNESS, ENGINE (04) - ELECTRICAL SYSTEMS

1

87731983

WIRE HARNESS

Engine; Replaces 87351752; Models With 87315269 105A Circuit Breaker, See Figure 04-07; If Used, Serial Range: -NAF208645

1шт.

1a

84191342

WIRE HARNESS

Serial Break pending. Call Parts Tech if needed before Break is entered, Start Serial: NAF208646

1шт.

2

L126051

GROUND STRAP

1шт.

3

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

4шт.

4

253347A1

NUT,Hex, M10 x 1.5

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

7

L127553

STUD

2шт.

8

L127555

NUT,Hex, 3/8" - 16

2шт.

9

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

11

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

12

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

16

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

1шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

18

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

20

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

21

121411A1

FUSE,7.5A, Mini, Brown

1шт.

22

824-1404

NUT,M4, Cl 5

1шт.

23

425-107

NUT,7/16"-14, G5

1шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

25

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

26

321446A1

SENSOR

Engine Coolant

1шт.
