Запчасти Case 621E (04-03) - HARNESS, FRONT - Z-BAR (04) - ELECTRICAL SYSTEMS

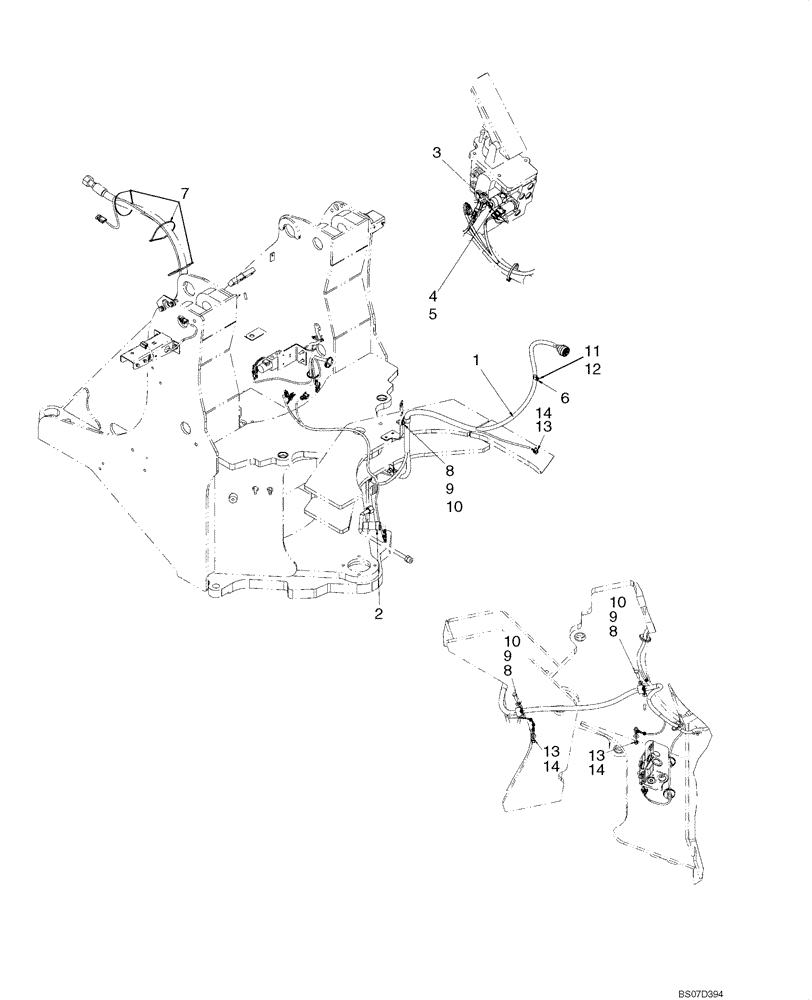

Схема запчастей Case 621E - (04-03) - HARNESS, FRONT - Z-BAR (04) - ELECTRICAL SYSTEMS
5
2
10
11
13
10
12
8
4
13
9
7
9
14
6
8
13
1
10
8
14
9
14
3

Артикул

Название

Примечание

Количество

1

87655474

HARNESS

Front Chassis, Z-Bar

1шт.

2

87549589

SWITCH

Brake Declutch

1шт.

3

84177015

PRESSURE SWITCH

Brake Light; Incl. O-Ring; Replaces 87307240 Pressure Switch Used On Some Models

1шт.

4

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

12 mm

1шт.

5

8605738

PRESSURE SWITCH

Brake Warning Pressure; For Use With 2.8L Brake Accumulators P/N 87741066; Prior To P.I.N. N8F204751

1шт.

5

87728741

PRESSURE SWITCH

Brake Warning Pressure; For Use With 3.5L Brake Accumulators P/N 87728740; P.I.N. N8F204751 And After

1шт.

6

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

1шт.

7

19-135

CABLE TIE

CABLE STRAP

8шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

3шт.

14

253347A1

NUT,Hex, M10 x 1.5

3шт.

Выбрано товаров: 15
