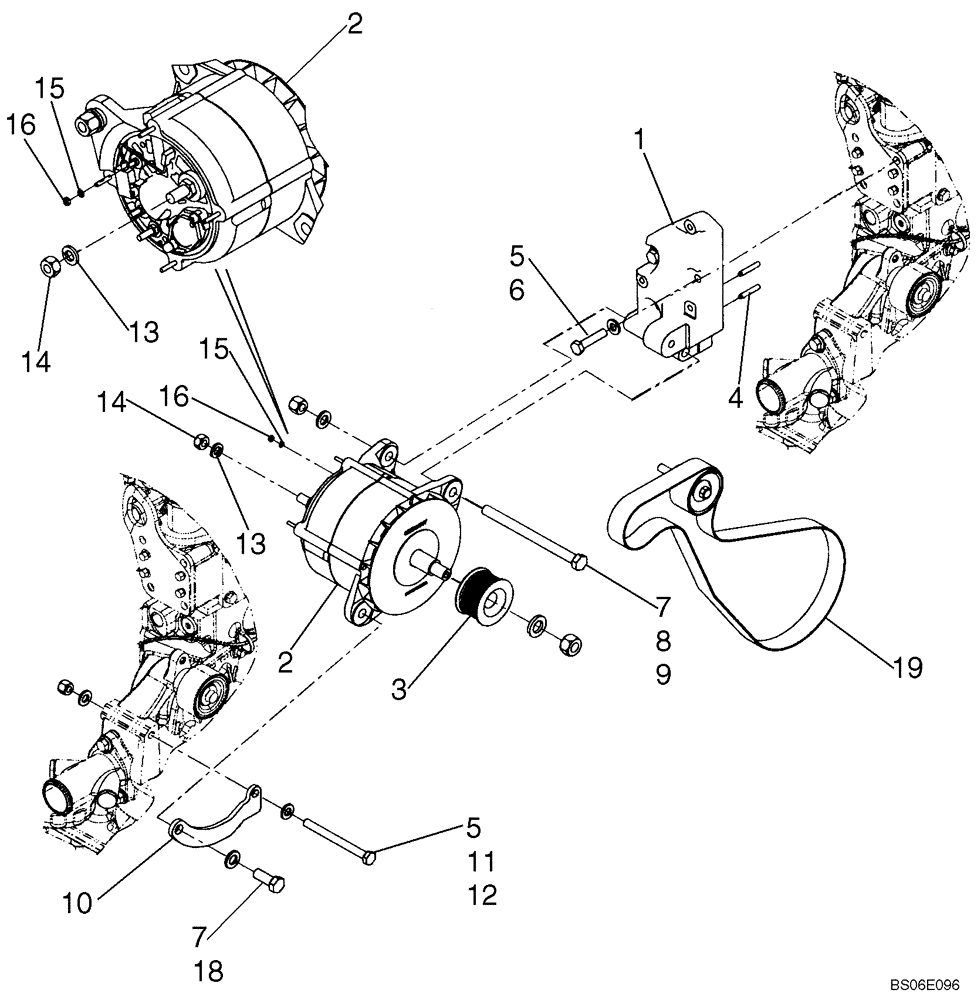

Запчасти Case 621E (04-02B) - ALTERNATOR - MOUNTING WITHOUT AIR CONDITIONING (04) - ELECTRICAL SYSTEMS

1

87547181

BRACKET

Alternator

1шт.

2

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

24V, 65 amp; See Figure 04-02

1шт.

2

1964860C1GV

ALTERNATOR

Value

1шт.

2

1964860C1R

REMAN-ALTERNATOR

621E WHEEL LOADER TIER 3 (NA), 24V, 65 amp, MOUNTING W/O AIR CONDITIONING (8/07-)

1шт.

2

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

3

A189616

PULLEY

Alternator

1шт.

4

837-6035

DOWEL,M6 x 35

2шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

6

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

8

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

1шт.

9

231-4248

NUT,1/2"-13, GB

1шт.

10

8501098

BRACE

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

12

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

1шт.

13

492-11044

LOCK WASHER,7/16"

1шт.

14

425-107

NUT,7/16"-14, G5

1шт.

15

892-11004

LOCK WASHER,M4

1шт.

16

824-1404

NUT,M4, Cl 5

1шт.

18

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

19

FAR8602680

BELT,1230.00 mm L, 8 Ribs

Without Air Conditioning

1шт.
