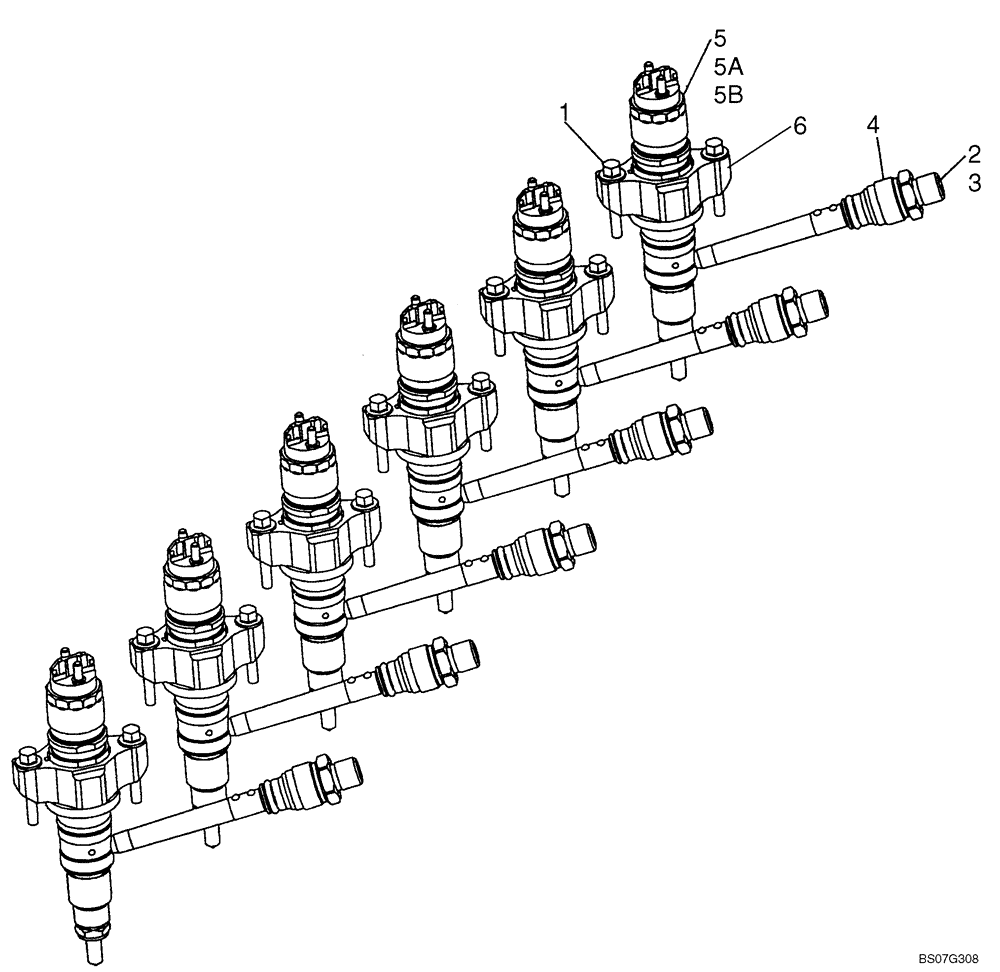

Запчасти Case 621E (03-07) - FUEL INJECTION SYSTEM - INJECTOR (03) - FUEL SYSTEM

1

4895483

BOLT,Flng, M6 x 1 x 35mm

M6 x 35

12шт.

2

2854606

FUEL TUBE,Connector Assembly

ASSY. Incl. Ref. 3

6шт.

3

4890929

O-RING,3mm Thk x 11mm ID

1шт.

4

4893739

TUBE NUT,Hex, M22 x 1.5

6шт.

5

2854608

FUEL SYSTEM INJECTOR

Incl. Refs. 5A, 5B, 6

6шт.

5

2854608R

REMAN-FUEL INJECTOR

Injector Nozzle

6шт.

5

2854608C

CORE-FUEL INJECTOR

Return Number

6шт.

5a

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

1шт.

5b

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

20.9 ID x 3.0 DIA

1шт.

6

2854609

BRACKET

Retainer

1шт.
