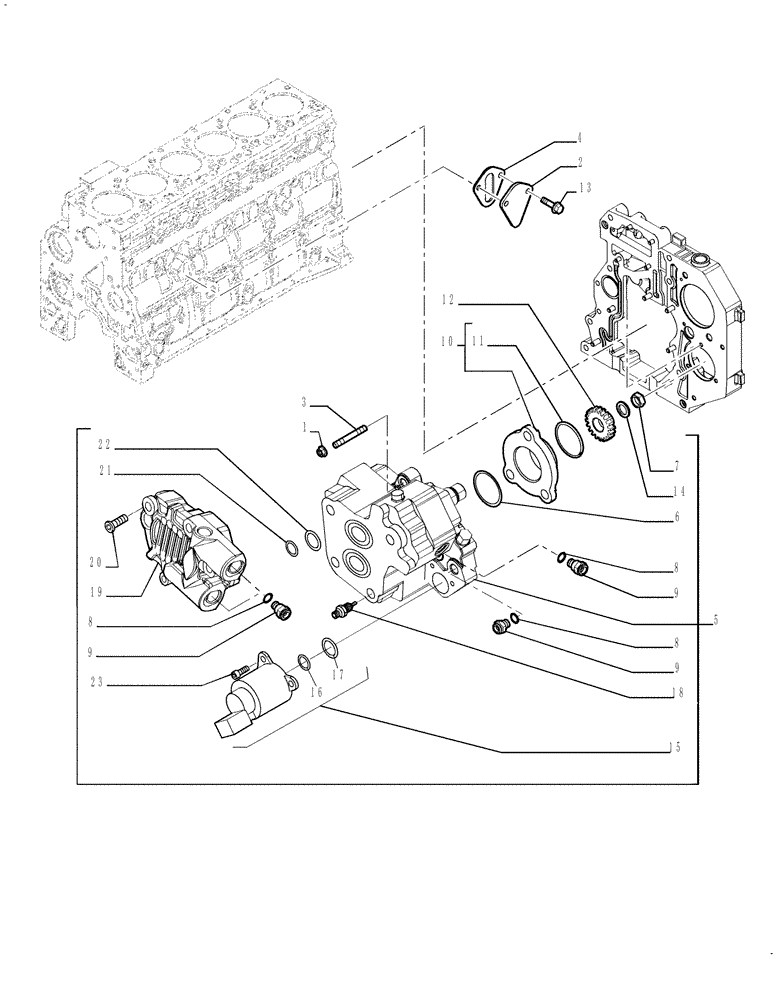

Запчасти Case 621E (03-05[01]) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

4899003

FLANGE NUT,M8 x 1.25

3шт.

2

4896952

COVER

1шт.

3

2852488

STUD,M8 x 1,25 x 50mm

M8 x 1.25 x 50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

4898921

FUEL INJECTION PUMP

Incl. Refs. 6 - 9, 14

1шт.

84385110R

REMAN-INJECTION PUMP

621E WHEEL LOADER TIER 3 (NA) (8/07-), Reman for New P/N 4898921

1шт.

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

5

4898921R

REMAN-INJECTION PUMP

621E, Use w/ Eng. P/N 87579400 Tier 3

1шт.

5

4898921C

CORE-INJECTION PUMP

Return Number

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

M18 x 1.5

1шт.

8

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

4шт.

10

2852804

HUB

ASSY. Incl. Ref. 11

1шт.

11

2852805

O-RING,2.6mm Thk x 72.6mm ID

1шт.

12

4893389

DRIVEN GEAR,27T

1шт.

13

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

14

4890635

SPRING WASHER

1шт.

15

42541851

SOLENOID

1шт.

16

42541850

O-RING

1шт.

17

42541849

O-RING

1шт.

18

42550486

VALVE

1шт.

19

42547619

FUEL PUMP

1шт.

20

42550487

SCREW

4шт.

21

42550488

O-RING

1шт.

22

42548060

O-RING

1шт.

23

42550932

SCREW

3шт.
