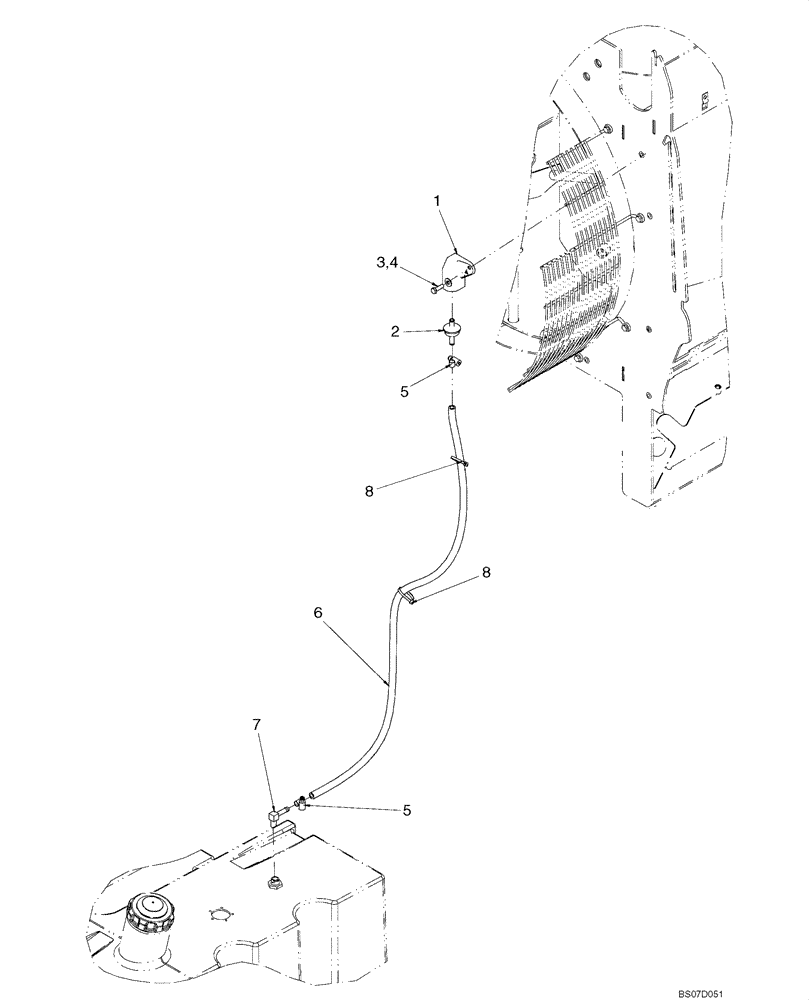

Запчасти Case 621E (03-04A) - FUEL TANK - BREATHER (03) - FUEL SYSTEM

1

186814A1

CAP

Fuel Tank Vent

1шт.

2

T103750

BREATHER

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

5

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

6

87549248

HOSE,9.50 mm ID x 1130.00 mm

Fuel Tank Breather

1шт.

7

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.
