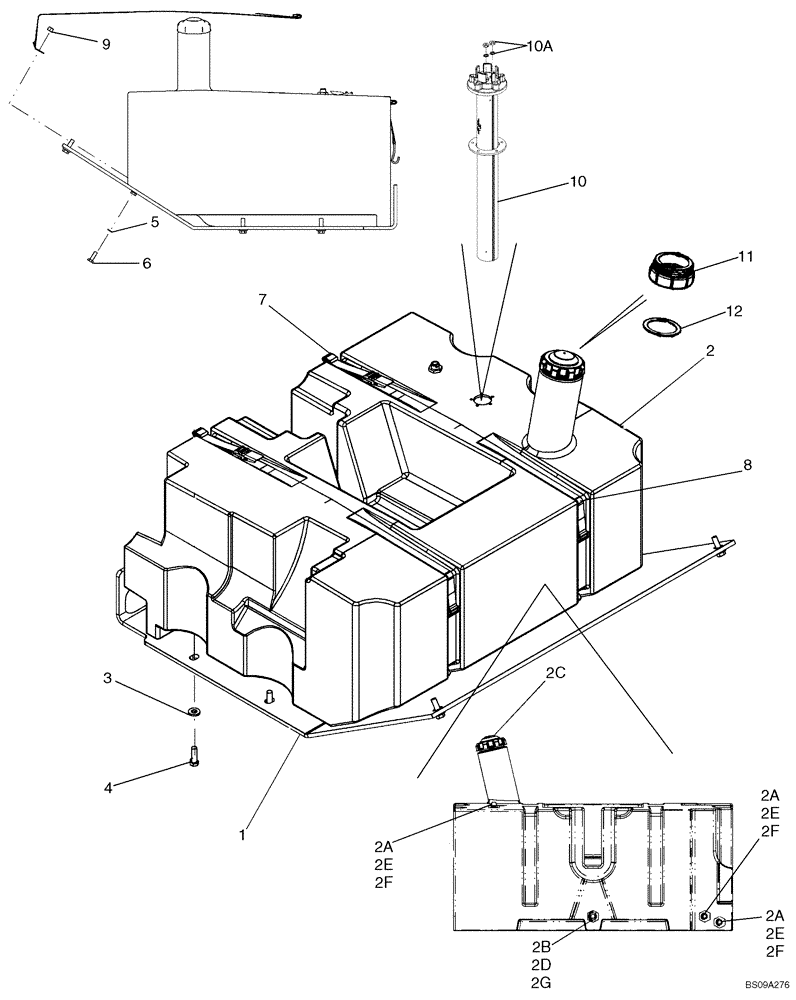

Запчасти Case 621E (03-04) - FUEL TANK FILLER - SENDER (03) - FUEL SYSTEM

1

87550115

PLATE

Fuel Tank

1шт.

2

8500909

FUEL TANK

Incl. Refs. 2A - 2G

1шт.

2a

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3шт.

2b

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

2c

8604443

FILLER CAP

1шт.

2d

87707148

FITTING

Replaces 87435224

1шт.

2e

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Replaces 87435505

3шт.

2f

1251791C1

JAM NUT,3/4" - 16 LH Thread

3шт.

2g

282709A1

NUT

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

7

366905A1

SECURING STRAP

476 mm (18 - 3/4in)

2шт.

8

366904A1

SECURING STRAP

1342 mm (52 - 13/16in)

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

87542710

SENDER UNIT

Fuel Level, Incl. Ref. 10A

1шт.

10a

87617083

KIT

Nut Pack

1шт.

11

84130479

ADAPTER

Fuel Tank; If Used

1шт.

12

84144829

GASKET,67mm ID x 84mm OD x 3mm Thk

GASKET; If Used

1шт.
