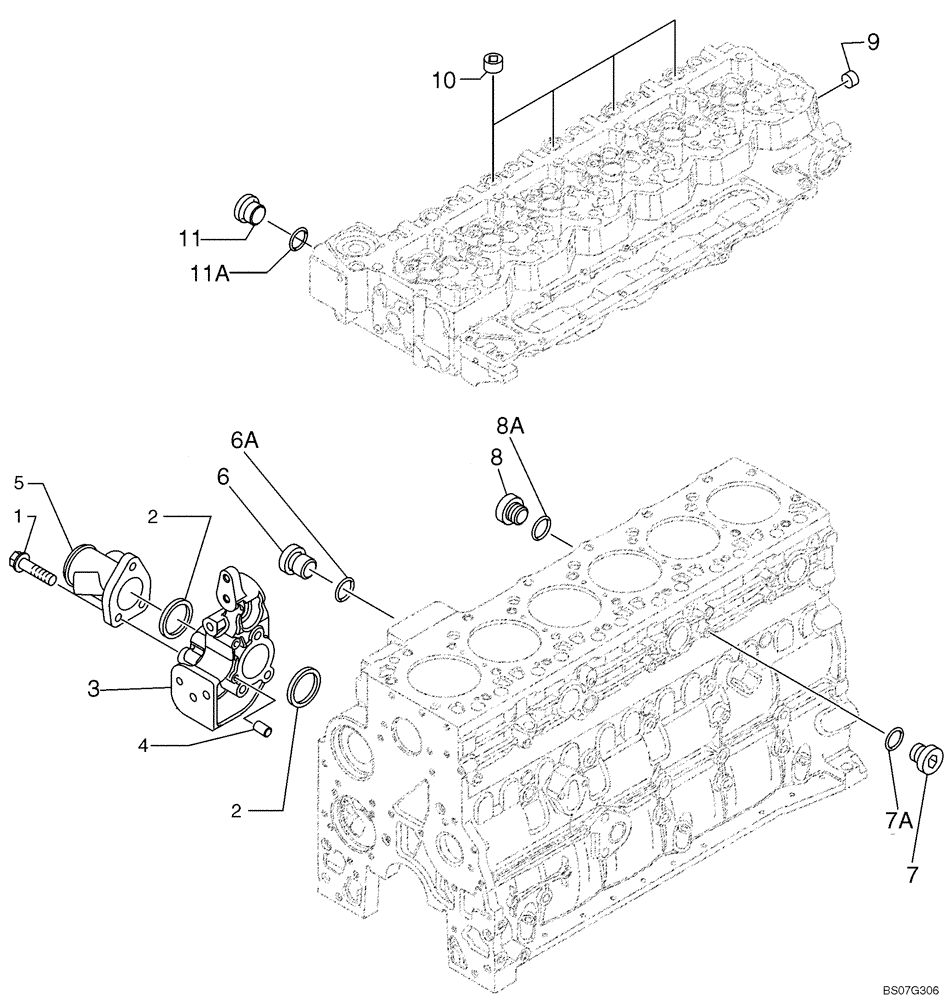

Запчасти Case 621E (02-39) - COOLING SYSTEM - ENGINE (02) - ENGINE

1

2852325

SCREW

M10 x 80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2852392

SUPPORT

Incl. Ref. 4

1шт.

4

4895576

DOWEL

2шт.

5

2852468

TUBE

1шт.

6

2852496

PLUG,M18 x 1.5

Incl. Ref. 6A

1шт.

6a

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

7

4895623

HEX SOCKET PLUG,M16 x 1.5

Incl. Ref. 7A

1шт.

7a

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

8

2852496

PLUG,M18 x 1.5

Incl. Ref. 8A

2шт.

8a

4899824

SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk

2шт.

9

4895079

PIPE PLUG,3/4"-14

2шт.

10

4895078

PIPE PLUG,1/2"-14

4шт.

11

4895080

HEX SOCKET PLUG,M22 x 1.5

Incl. Ref. 11A

1шт.

11a

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
