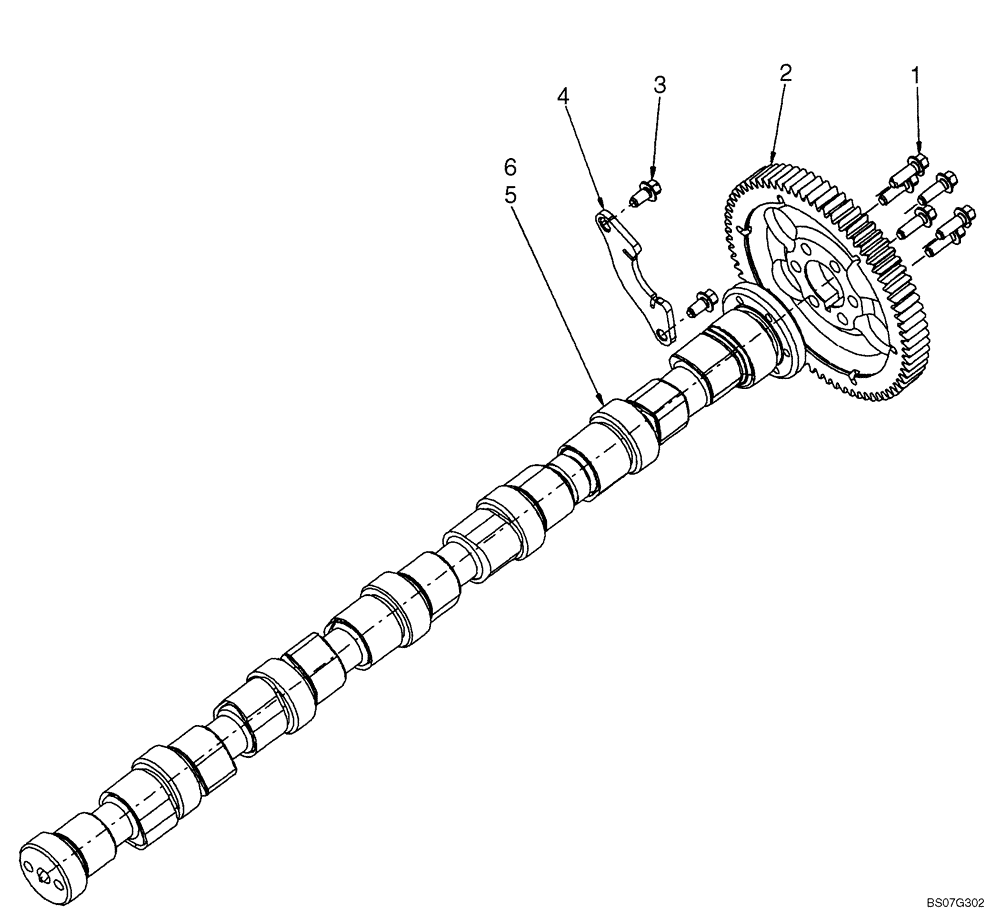

Запчасти Case 621E (02-34) - CAMSHAFT (02) - ENGINE

87538292

SHORT ENGINE

Includes All Parts On Figures 02-20, 02-21, 02-26, 02-34, 02-35, 02-36

1шт.

87538292R

REMAN-SHORT ENGINE

621E Tier 3 (8/07-)

1шт.

87538292C

SHORT ENGINE

Return Number

1шт.

87538292ER

REMAN-SHORT ENGINE

621E 6 Cylinder, Tier 3, (8/07)

1шт.

87538292EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

6шт.

2

4896380

DRIVEN GEAR

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

4

4897457

SUPPORT

1шт.

5

2854604

CAMSHAFT

Incl. Ref. 6; See Figure 02-20 For Camshaft Bushing

1шт.

2854604R

REMAN-CAMSHAFT

621E TIER 3 (NA) (8/07-)

1шт.

2854604C

CORE-CAMSHAFT

Return Number

1шт.

6

4899080

DOWEL,M6 x 8 L

Not Illustrated

1шт.
