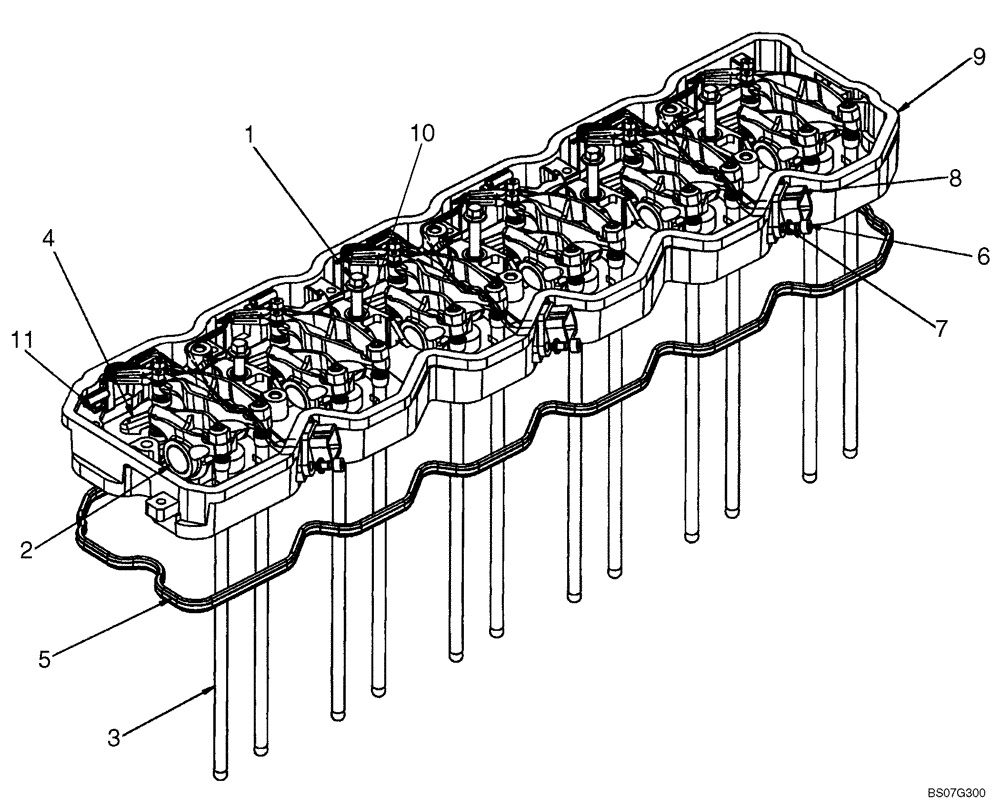

Запчасти Case 621E (02-33) - ROCKER ARMS (02) - ENGINE

1

4895432

SCREW,M8 x 1.25 x 70mm

M8 x 1.25 x 70

5шт.

2

2856458

ROCKER ARM

Assy. See Figure 02-33A

6шт.

3

4895031

PUSH ROD

12шт.

4

2854530

BRIDGE

12шт.

5

2853788

GASKET,10.35mm Thk

Rocker Lever Housing

1шт.

6

2852602

HEX SOC SCREW,M6 x 16mm

Socket Head Cap

3шт.

7

2852776

WASHER,6mm ID x 11mm OD

M6 x 11 x 1.6

3шт.

8

2852427

WIRE HARNESS

Harness

3шт.

9

4899257

HOUSING

ASSY. Rocker Lever, Incl. Ref. 10

1шт.

10

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

5шт.

11

2852428

WIRE CLAMP,6mm ID

Wire Retaining

6шт.

12

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

Not Illustrated

2шт.
