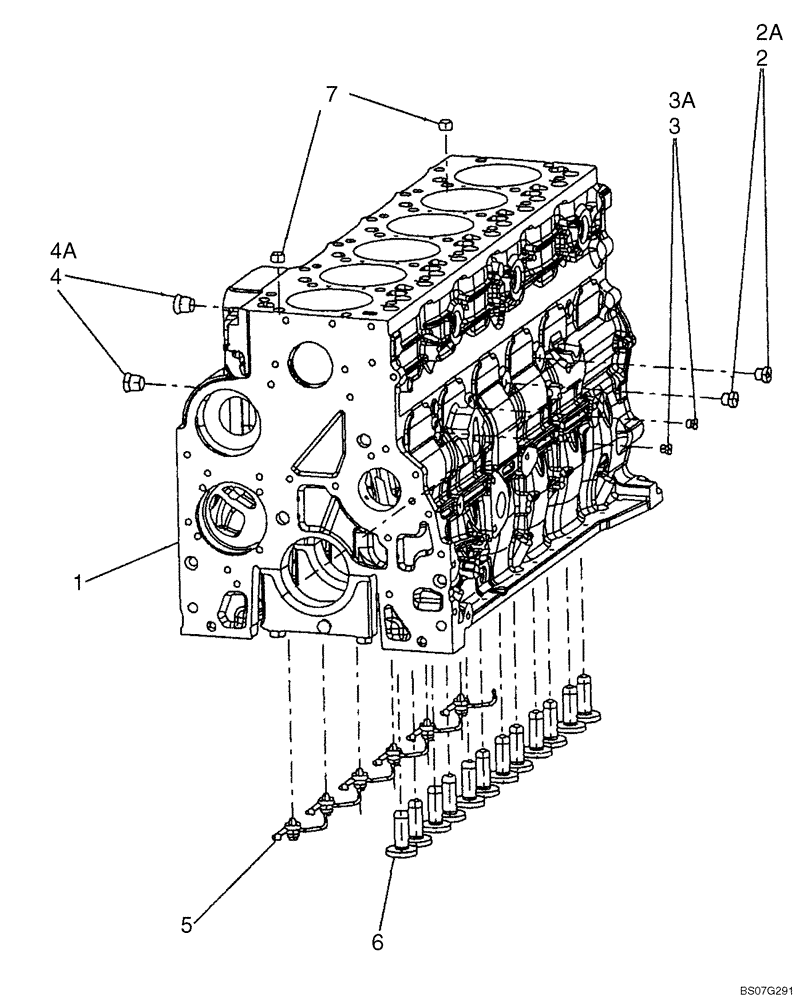

Запчасти Case 621E (02-21) - CYLINDER BLOCK - PLUG ASSY (02) - ENGINE

87538292

SHORT ENGINE

Includes All Parts On Figures 02-20, 02-21, 02-26, 02-34, 02-35, 02-36

1шт.

87538292R

REMAN-SHORT ENGINE

621E Tier 3 (8/07-)

1шт.

87538292C

SHORT ENGINE

Return Number

1шт.

87538292ER

REMAN-SHORT ENGINE

621E 6 Cylinder, Tier 3, (8/07)

1шт.

87538292EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

2830076

CYLINDER BLOCK,6 Cylinders

ASSY. See Figure 02-20

1шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

Incl. Ref. 2A

2шт.

2a

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

3

4899009

PLUG,M10 x1

Incl. Ref. 3A

2шт.

3a

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

4

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl. Ref. 4A

2шт.

4a

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

5

2852202

NOZZLE, PISTON COOLI

6шт.

6

4891226

TAPPET

12шт.

7

4895049

DOWEL,M16.05 x 10

2шт.
