Запчасти Case 621E (09-95) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS

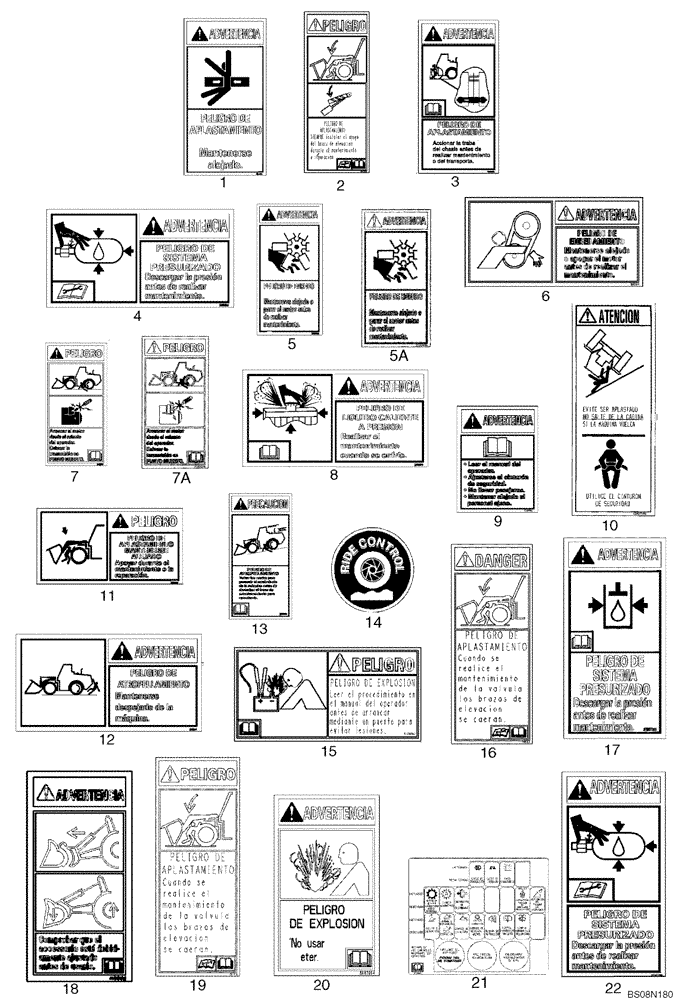

Схема запчастей Case 621E - (09-95) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS
5a
15
6
3
1
13
14
7
8
5
22
9
21
19
4
7a
20
12
17
16
11
18
10
2

Артикул

Название

Примечание

Количество

1

334576A1

DECAL

Warning; Crush Hazard

2шт.

2

407739A2

DECAL

Lift Arm Support

1шт.

3

334573A1

DECAL

Warning; Crush Hazard

1шт.

4

334015A1

DECAL

Warning; Pressurized System Hazard

2шт.

5

334034A1

WARNING DECAL

Fan; No Longer Available, Order Ref. 5A

2шт.

5a

87488608

DECAL

Warning; Fan

2шт.

6

388158A1

DECAL

Warning; Belt Entanglement

2шт.

7

334567A1

DECAL

Danger; Starting In Gear; No Longer Available, Order Ref. 7A

2шт.

7a

87488618

DECAL

Danger; Starting In Gear

2шт.

8

334664A1

DECAL

Warning; Hot Liquid Hazard

1шт.

9

334000A2

DECAL

Warning; Read The Operator's Manual

1шт.

10

124271A1

DECAL

Warning; Do Not Jump

1шт.

11

334677A1

DECAL

Danger; Crush Hazard

1шт.

12

334688A1

DECAL

Warning; Runover Hazard

1шт.

13

334704A1

DECAL

Caution; Block Wheels

1шт.

14

304083A1

DECAL

Ride Control

1шт.

15

412474A1

DECAL

Danger; Battery Explosion Hazard

2шт.

16

87453134

DECAL

Danger; Crush Hazard

1шт.

17

336011A1

DECAL

Warning; Pressurized System Hazard

3шт.

18

364918A1

DECAL

Attachment Test

1шт.

19

87453134

DECAL

Crush Hazard

1шт.

20

8603094

WARNING DECAL

Ether Explosion

2шт.

21

87599220

DECAL

DECAL, Rocker Switch

1шт.

22

87597329

DECAL

Fluid Under Pressure

1шт.

Выбрано товаров: 24
