Запчасти Case 621E (09-93) - DECALS - ENGLISH (09) - CHASSIS

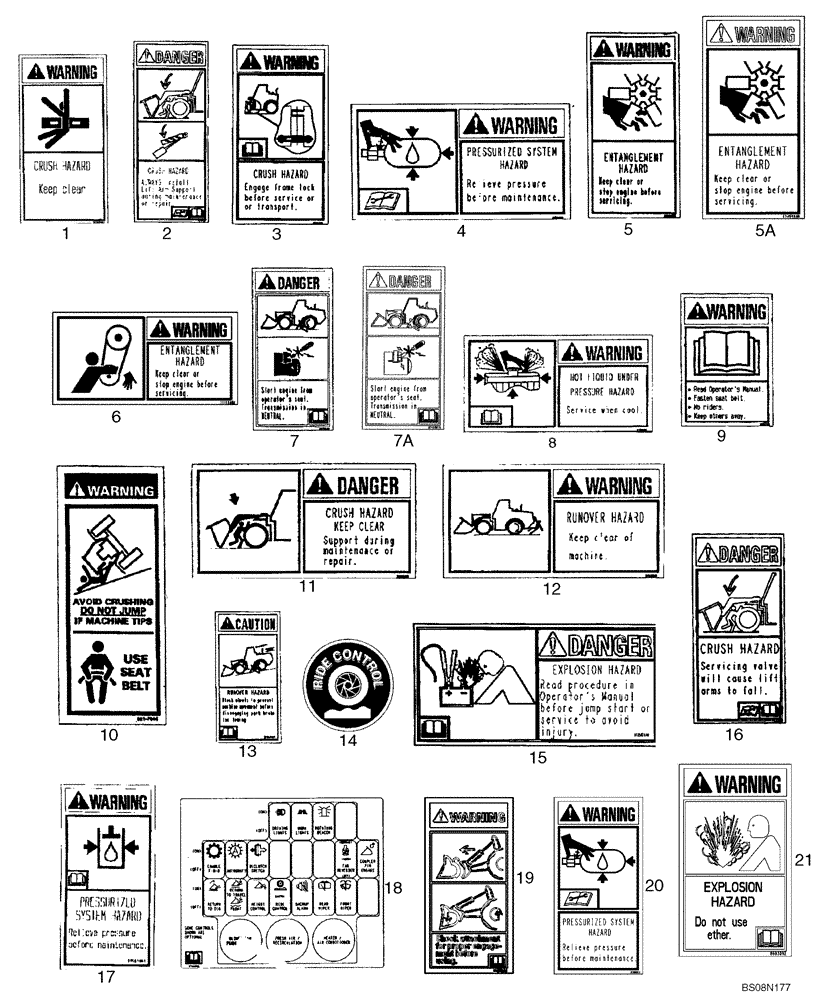

Схема запчастей Case 621E - (09-93) - DECALS - ENGLISH (09) - CHASSIS
12
7
7a
13
19
20
11
3
1
5
16
15
14
2
10
4
8
18
17
9
21
5a
6

Артикул

Название

Примечание

Количество

1

323694A1

DECAL

Warning; Crush Hazard

2шт.

2

407737A2

DECAL

Lift Arm Support; If Used

1шт.

3

329047A1

DECAL

Warning; Crush Hazard

1шт.

4

328904A1

DECAL

Warning; Pressurized System Hazard

2шт.

5

332512A1

DECAL

Warning; Fan; No Longer Available, Order 87488606 Decal, Ref. 5A

2шт.

5a

87488606

DECAL

Warning; Fan

2шт.

6

388112A1

DECAL

Warning; Belt Entanglement

1шт.

7

334456A1

DECAL

Danger; Starting In Gear; No Longer Available, Order 87488616 Decal, Ref. 7A

1шт.

7a

87488616

DECAL

Danger; Starting In Gear

1шт.

8

329044A1

WARNING DECAL,168mm x 88mm H

Hot Liquid Hazard

1шт.

9

382622A1

DECAL,60mm x 90mm H

Warning; Read The Operator's Manual

1шт.

10

321-7030

WARNING DECAL

Do Not Jump

1шт.

11

328754A1

DANGER DECAL

Danger; Crush Hazard

1шт.

12

328752A1

DECAL

Warning; Runover Hazard

1шт.

13

329049A1

DECAL

Caution; Block Wheels

1шт.

14

304083A1

DECAL

Ride Control

1шт.

15

412471A1

DECAL

Danger; Battery Explosion Hazard

2шт.

16

87453132

DECAL

Danger; Crush Hazard

2шт.

17

335889A1

DECAL

Warning; Pressurized System Hazard

2шт.

18

87588859

DECAL

Switch

1шт.

19

364742A1

DECAL

Attachment Test

1шт.

20

87586617

DECAL

Warning; Pressurized System Hazard

1шт.

21

8603092

WARNING DECAL,55mm x 95mm H

Ether Explosion

1шт.

Выбрано товаров: 23
