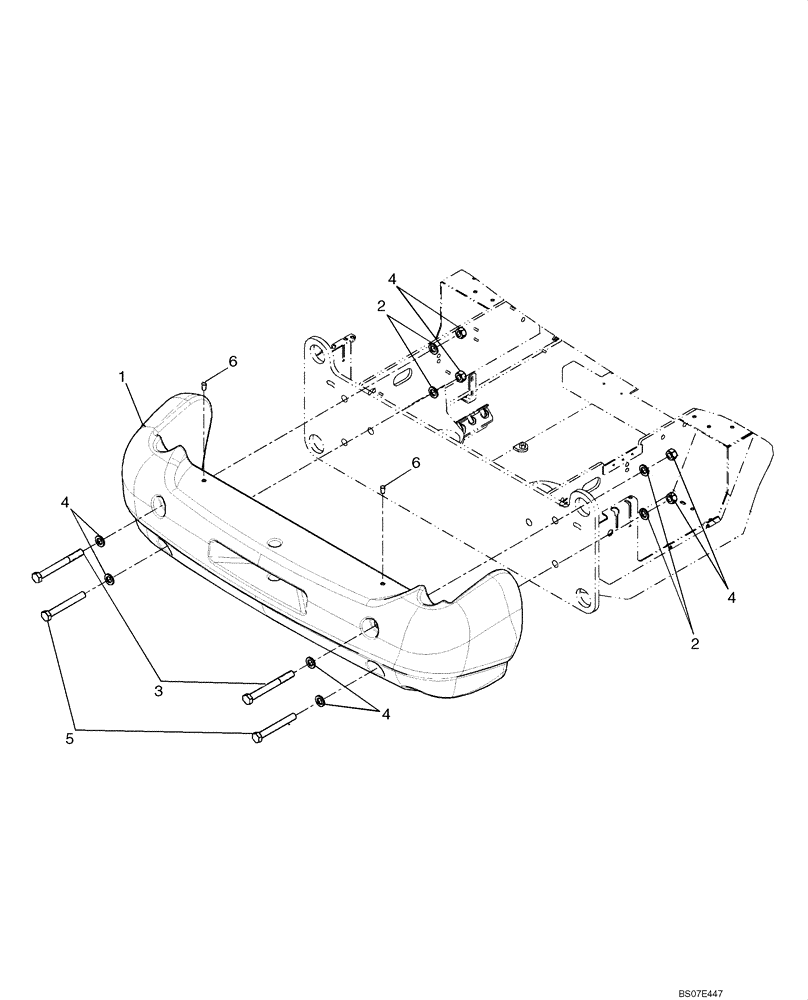

Запчасти Case 621E (09-85A) - COUNTERWEIGHT - HEAVY DUTY (09) - CHASSIS

REF

INSTRUCTION

HEAVY DUTY COUNTERWEIGHT

1шт.

1

87577184

COUNTERWEIGHT

885 kg (1950 lb)

1шт.

2

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

8шт.

3

827-24230

BOLT,Hex, M24 x 3 x 230mm, Cl 10.9

2шт.

4

829-1424

NUT,M24, Cl 10

4шт.

5

827-24190

BOLT,Hex, M24 x 3 x 190mm, Cl 10.9

2шт.

6

87308200

PLASTIC PLUG

2шт.
