Запчасти Case 621E (09-76) - AIR CONDITIONING (09) - CHASSIS

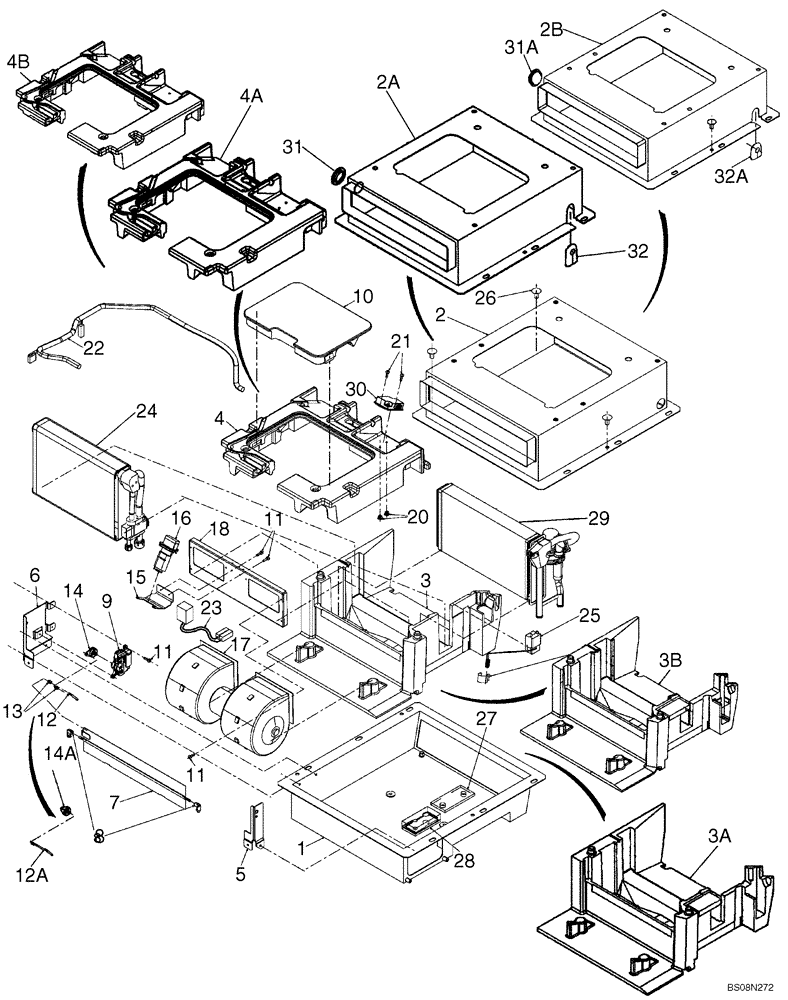

Схема запчастей Case 621E - (09-76) - AIR CONDITIONING (09) - CHASSIS
31a
11
12
25
2
11
5
26
21
4b
23
32a
10
7
29
24
3b
30
17
1
2a
12a
9
4
14
11
32
22
3
13
4a
15
28
3a
31
16
20
18
14a
2b
27
6

Артикул

Название

Примечание

Количество

76303592

AIR CONDITIONER

HVAC Unit; Production Number Only, Order Component Parts; Incl. Refs. 1, 2, 3, 4, 5 - 12, 13, 14, 16 - 31; No Longer Available, Order Air Conditioner 87472474 and Jumper Harness 87727867

1шт.

87706152

AIR CONDITIONER

HVAC Unit; Production Number Only, Order Component Parts; Incl. Refs. 1, 2A, 3A, 4A, 5 - 12, 13, 14, 16 - 31, 32; No Longer Available, Order Air Conditioner 87472474

1шт.

84192329

AIR CONDITIONER

HVAC Unit; Production Number Only, Order Component Parts; Incl. Refs. 1, 2B, 3B, 4B, 5 - 11, 12A, 13, 14A, 16 - 30, 31A, 32A; Replaces 87472474

1шт.

1

87529453

BOX

Lower

1шт.

2

87529457

BOX

Upper; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A

1шт.

2a

87738373

BOX

Upper; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A

1шт.

2b

87472438

BOX

Upper

1шт.

3

87529458

BOX

Lower; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A

1шт.

3a

87738374

BOX

Lower; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A

1шт.

3b

87474170

SHIELD

Lower

1шт.

4

87529459

BOX

Upper; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A

1шт.

4a

87738375

BOX

Upper; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A

1шт.

4b

87472439

BOX

Upper

1шт.

5

NSS

NOT SOLD SEPARAT

Right Fastening Bracket

1шт.

6

NSS

NOT SOLD SEPARAT

Left Fastening Bracket

1шт.

7

87643958

FLAP

Recirculation

1шт.

8

87643957

BUSHING

For Recirculation Flap

2шт.

9

87528689

ACTUATOR

1шт.

10

87529462

COVER

Inspection Trapdoor

1шт.

11

NSS

NOT SOLD SEPARAT

Screw

13шт.

12

87643954

TIE-ROD

Used With 8529617 Lever, Ref. 14

1шт.

12a

87472436

TIE-ROD

Used With 87472437 Lever, Ref. 14A

1шт.

13

87643955

BUSHING

2шт.

14

87529617

LEVER

No Longer Available, Order 87472437 Lever and 87472436 Tie-Rod, Refs. 12A, 14A

1шт.

14a

87472437

LEVER

1шт.

16

87528688

RESISTOR

1шт.

17

84192331

BLOWER ASSY.

Electric Fan; Replaces 87528687

1шт.

18

NSS

NOT SOLD SEPARAT

Bracket

1шт.

19

87577360

SPRING CLIP

1шт.

20

NSS

NOT SOLD SEPARAT

Screw

2шт.

21

NSS

NOT SOLD SEPARAT

Screw

2шт.

22

87529485

CABLE

Heater; Used With Air Conditioner Unit 76303592; Used With 87719515 Climate Controller, See Figure 09-78; If Used

1шт.

22

87727866

CABLE

Heater; Used With Air Conditioner Units 87706152, 87472474; Used With 87719515 Climate Controller, See Figure 09-78; If Used

1шт.

23

NSS

NOT SOLD SEPARAT

Fan Cable

1шт.

22

84192332

WIRE HARNESS

CABLE, Used With 84169850 Climate Controller, See Figure 09-78; If Used

1шт.

24

87529493

EVAPORATOR

See Figure 09-77

1шт.

25

87529621

THERMOSTATIC SWITCH,Air Conditioning

1шт.

26

NSS

NOT SOLD SEPARAT

Plug

4шт.

27

87728778

SEAL

1шт.

28

87577361

FOAM INSULATION

Used With Air Conditioner 76303592

1шт.

28

87728777

SEAL

Used With Air Conditioners 87706152, 87472474

1шт.

29

87475866

RADIATOR

Heater; Replaces 87529289; See Figure 09-72

1шт.

30

87529487

SOLENOID

1шт.

31

87706366

CAP

Used With Air Conditioners 76303592, 87706152

1шт.

31a

87472441

PLUG

Used With Air Conditioner 87472474

1шт.

32

87706365

GROMMET

Cable; Used With Air Conditioner 87706152

1шт.

32a

87476710

GROMMET

Cable; Used With Air Conditioner 87472474

1шт.

Выбрано товаров: 47
