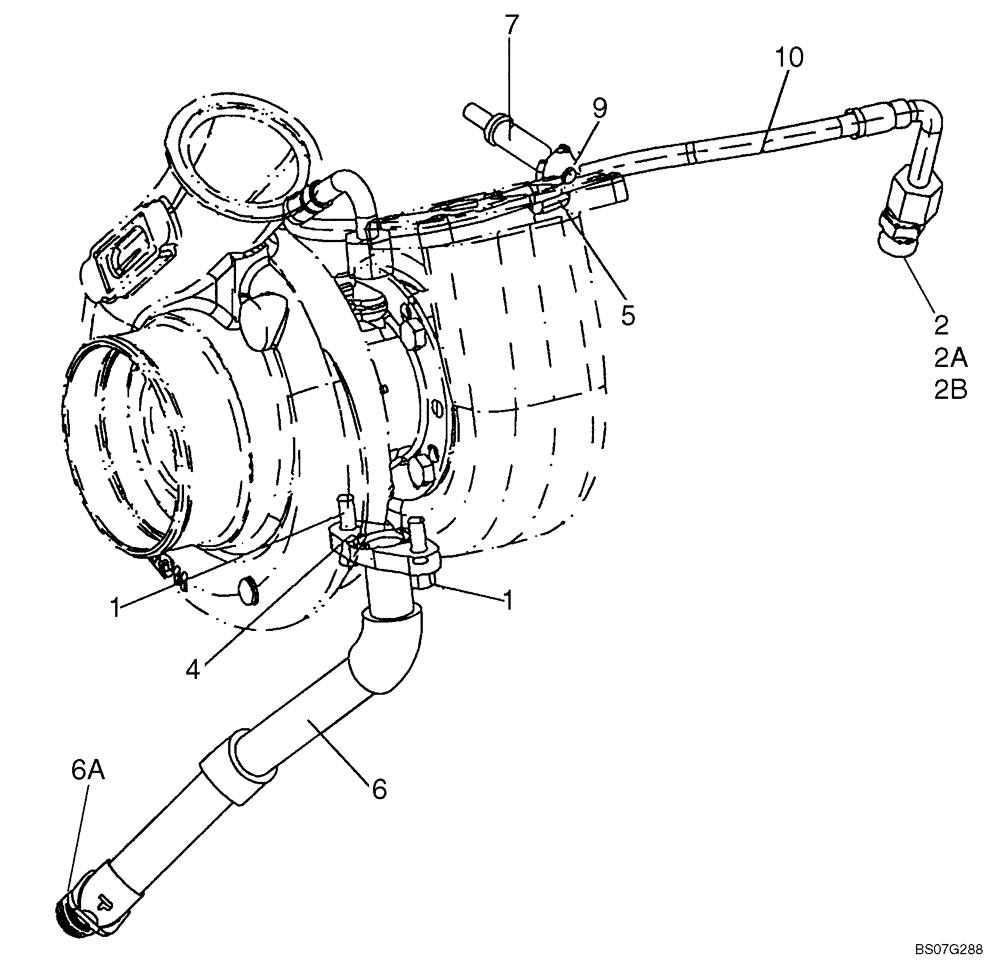

Запчасти Case 621E (02-16) - TURBOCHARGER - DRAIN LINE (02) - ENGINE

1

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

Incl. Refs. 2A, 2B

1шт.

2a

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

2b

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

4

4891288

GASKET,0.8mm Thk

1шт.

5

4899436

CLAMP

1шт.

6

2856402

TUBE

Turbo Oil Drain, Incl. Ref. 6A

1шт.

6a

2852801

O-RING

1шт.

7

4896991

BOLT

1шт.

7

2854375

STUD

In Alternative

1шт.

8

4895089

PLUG,0.886" L

Not Illustrated

1шт.

9

4899003

FLANGE NUT,M8 x 1.25

1шт.

10

4899377

HOSE

Flexible

1шт.
