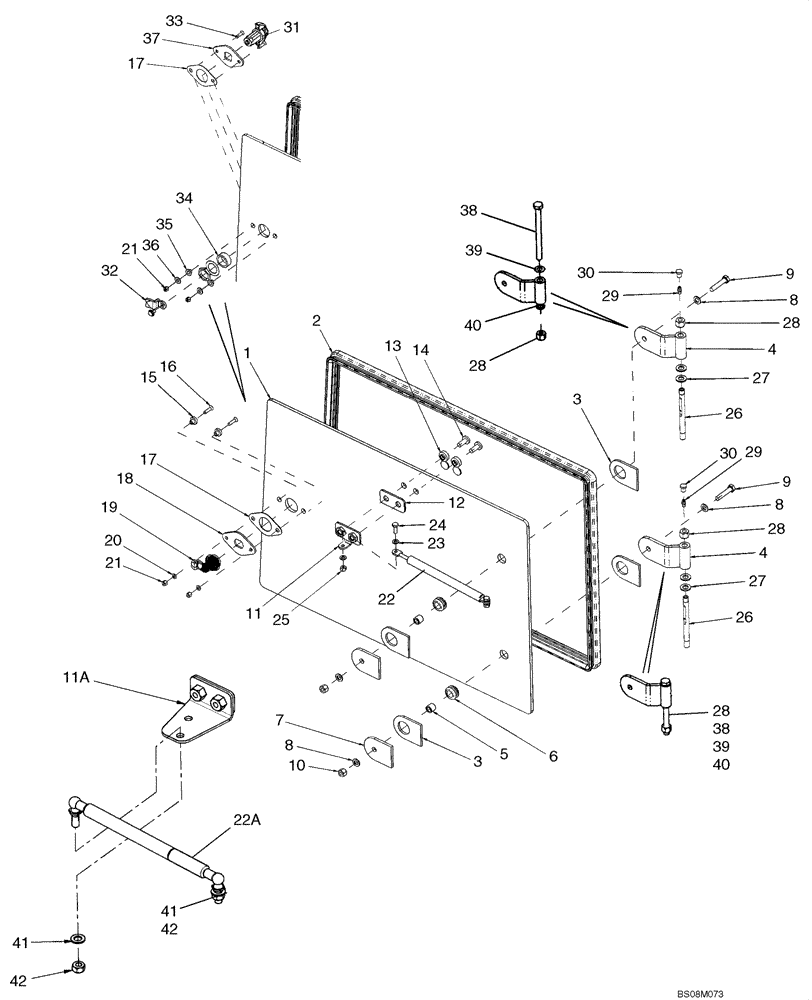

Запчасти Case 621E (09-61) - CAB - WINDOW, RIGHT-HAND-LOWER (09) - CHASSIS

1

76303460

CAB GLASS ASSY

1шт.

2

76303240

DOOR SEAL

1шт.

3

76303193

GASKET,4mm Thk

4шт.

4

87472961

HINGE

Replaces 76303248

2шт.

5

816213301

SPACER

2шт.

6

4227144

GROMMET,M14 x 25.5 x 19.5

2шт.

7

76303192

PLATE

2шт.

8

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

76303463

BRACKET

Window, No Longer Available, Order 87743607 Bracket, Ref. 11A

1шт.

12

76303461

GASKET,3mm Thk

1шт.

11a

87743607

BRACKET

Window

1шт.

13

87537993

CAP

2шт.

14

840-1820

SCREW,Pan, M8 x 20mm, Cl 4.8

2шт.

15

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

2шт.

16

13311217

SCREW,Pozidriv Oval Hd, Csk, M5 x 20mm, Cl 5.8, Full Thd

2шт.

17

76303458

GASKET,1mm Thk

1шт.

18

76303459

PLATE

1шт.

19

76303249

LOCK

Door; If Used

1шт.

20

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

21

832-10405

NUT,M5 x .8, Cl 8

2шт.

22

76303455

GAS STRUT

Window; No Longer Available, Order 87743659 Gas Strut, Ref. 22A

1шт.

22

87743659

GAS STRUT

Window

1шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Replaces 614-6016 Bolt, M6 x 20, Used On Some Models; Used W/ Gas Strut 76303455 And Bracket 76303463

2шт.

25

412152

NUT,M6 x 1, Cl 8.8

Used W/ Gas Strut 76303455 And Bracket 76303463

2шт.

25

832-10406

NUT,M6 x 1, Cl 8

Used W/ Gas Strut 76303455 And Bracket 76303463

2шт.

26

3805129

PIN,10mm OD x 117mm L

2шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

If Used

4шт.

27

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

Thrust, If Used

4шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

29

76043510

LUBE NIPPLE,M6 x 1 x 15 L

2шт.

30

1498088

CAP

2шт.

31

87628359

LATCH

If Used

1шт.

32

87723154

PAWL

Door Latch; Replaces 87628360 Pawl Used On Some Models

1шт.

33

87629047

SCREW,Pozidrive, Oval HD, M5 x 20mm, Cl 5.8

2шт.

34

87628362

SPACER,22.5mm ID x 29.5mm OD x 11mm L

Door Latch

1шт.

35

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

2шт.

36

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

2шт.

37

87628364

PLATE

Latch Mounting

1шт.

38

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

If used

2шт.

39

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

Thrust, If Used

2шт.

40

86547919

WASHER,10.3mm ID x 16.1mm OD x 2.1mm Thk

Brass, If Used

2шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used W/ Strut 87743659 And Bracket 87743607

2шт.

42

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Used W/ Strut 87743659 And Bracket 87743607

2шт.
