Запчасти Case 621E (09-57) - CAB - INTERIOR TRIM - STORAGE COMPARTMENTS (09) - CHASSIS

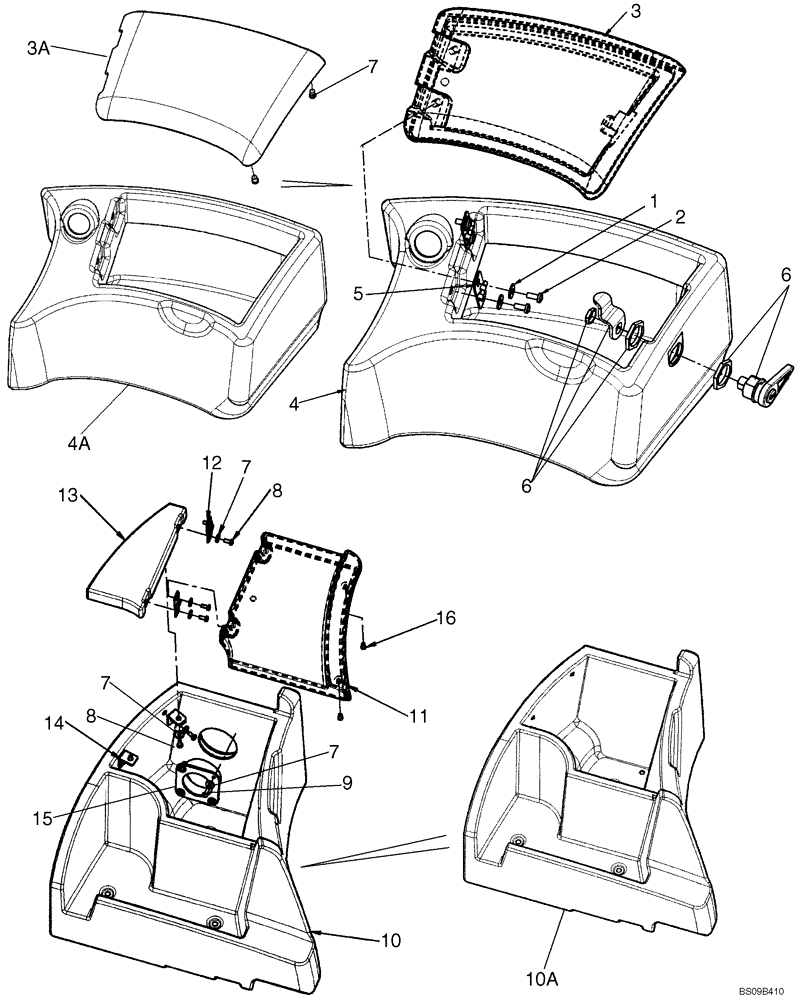

Схема запчастей Case 621E - (09-57) - CAB - INTERIOR TRIM - STORAGE COMPARTMENTS (09) - CHASSIS
3
13
7
6
11
8
1
3a
14
9
16
4
15
6
4a
7
10
10a
5
7
8
7
12
2

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

STORAGE BOX, Not Serviced As An Assembly. Incl. Refs. 1 - 7

1шт.

1

895-25005

WASHER,M5 x 15 x 1.6

4шт.

2

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4шт.

3

76303031

COVER

Storage Box, Box With Latch; If Used

1шт.

3a

84167316

COVER

COVER, Storage Box, Box Without Latch; If Used

1шт.

4

76303032

BOX

Storage, With Latch; If Used

1шт.

4a

84167776

BOX

BOX, Storage, Without Latch; If Used

1шт.

5

76303262

HINGE

2шт.

6

76303439

LATCH

LOCK, Assy.; If Used

1шт.

7

87614173

PLUG

If Used

2шт.

REF

INSTRUCTION

COOL BOX, Not Serviced As An Assembly. Incl. Refs. 8 - 17

1шт.

8

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

8шт.

9

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

Replaces 87564751, Screw used on some models; If Used

4шт.

10

76303034

BOX

Cool, Serial Range: -N9F208085

1шт.

10a

84169676

BOX

Storage, Start Serial: N9F208086

1шт.

11

76303035

COVER

Cool Box

1шт.

12

76303262

HINGE

2шт.

13

76303348

COVER

Cool Box

1шт.

14

76303437

BRACKET

2шт.

15

76303438

BRACKET

If Used

1шт.

16

87614173

PLUG

2шт.

17

895-25005

WASHER,M5 x 15 x 1.6

8-12шт.

Выбрано товаров: 22
