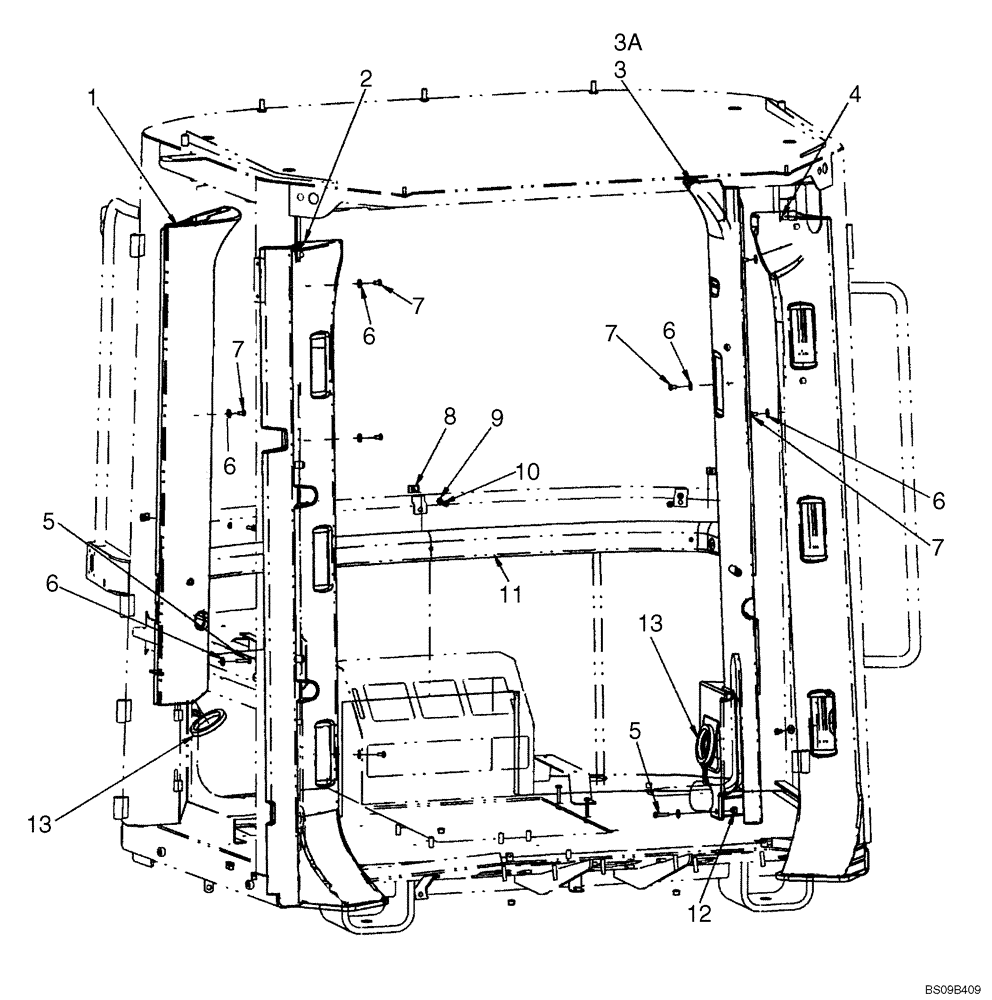

Запчасти Case 621E (09-55) - CAB - INTERIOR TRIM - COLUMNS (09) - CHASSIS

1

76303037

TRIM PANEL

Rear RH

1шт.

2

76303039

PILLAR

Front RH

1шт.

3

76303036

TRIM PANEL

Rear LH, Used On Models With Vented Cool Box

1шт.

3a

84169786

AIR DUCT

TRIM PANEL, Rear LH, Used On Models Without Vented Cool Box

1шт.

4

76303038

TRIM PANEL

Front LH

1шт.

5

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

2шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

7

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

7шт.

8

833-40306

SPRING NUT,M6, U

3шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

10

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

3шт.

11

76303029

COVER

Rear

1шт.

12

76301020

SPRING NUT

Spring M6

1шт.

13

76303500

GASKET,Square, 10mm Thk x 70mm ID

LH

1-2шт.
