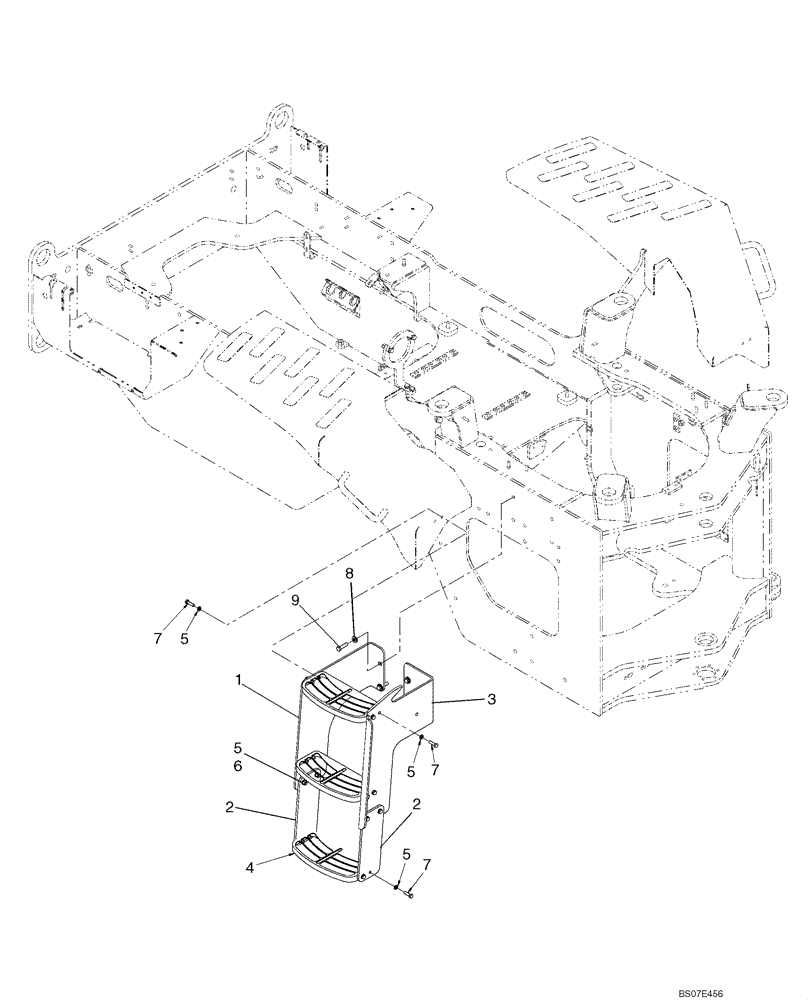

Запчасти Case 621E (09-38) - STEPS - RIGHT (09) - CHASSIS

1

87579386

BRACKET

RH Step Support, Serial Range: -N8F203565

1шт.

1

87736610

BRACKET

RH Step Support, Start Serial: N8F203565

1шт.

2

87559798

STRAP

2шт.

3

87663490

BRACKET, SUPPORTING

RH Step, Serial Range: -N8F203565

1шт.

3

87736612

BRACKET

RH Step, Start Serial: N8F203565

1шт.

4

87434472

STEP

3шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.
