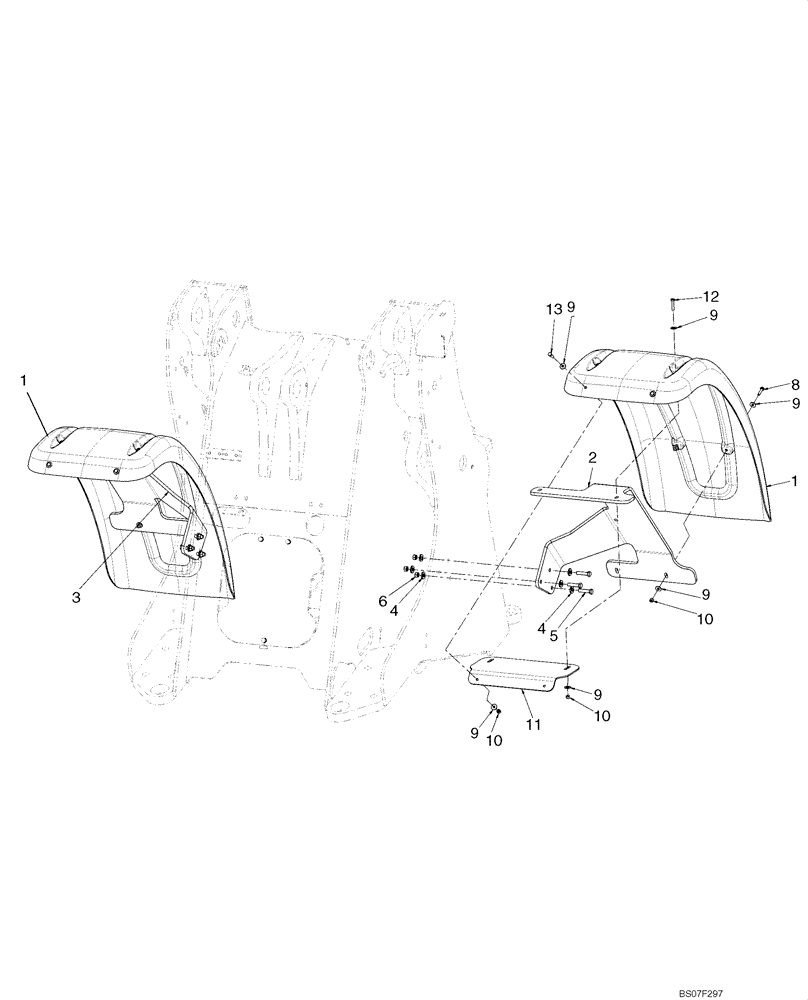

Запчасти Case 621E (09-30) - FENDERS, FRONT - STANDARD - PRIOR TO P.I.N. N8F203756 (09) - CHASSIS

1

87355957

FENDER

Front

2шт.

2

87579405

BRACKET

LH Fender

1шт.

3

87579406

BRACKET

RH Fender

1шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

12шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

6

829-1412

NUT,M12, Cl 10.9

6шт.

8

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

9

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

24шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

11

87620991

BRACKET

Front Fender

2шт.

12

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

13

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
