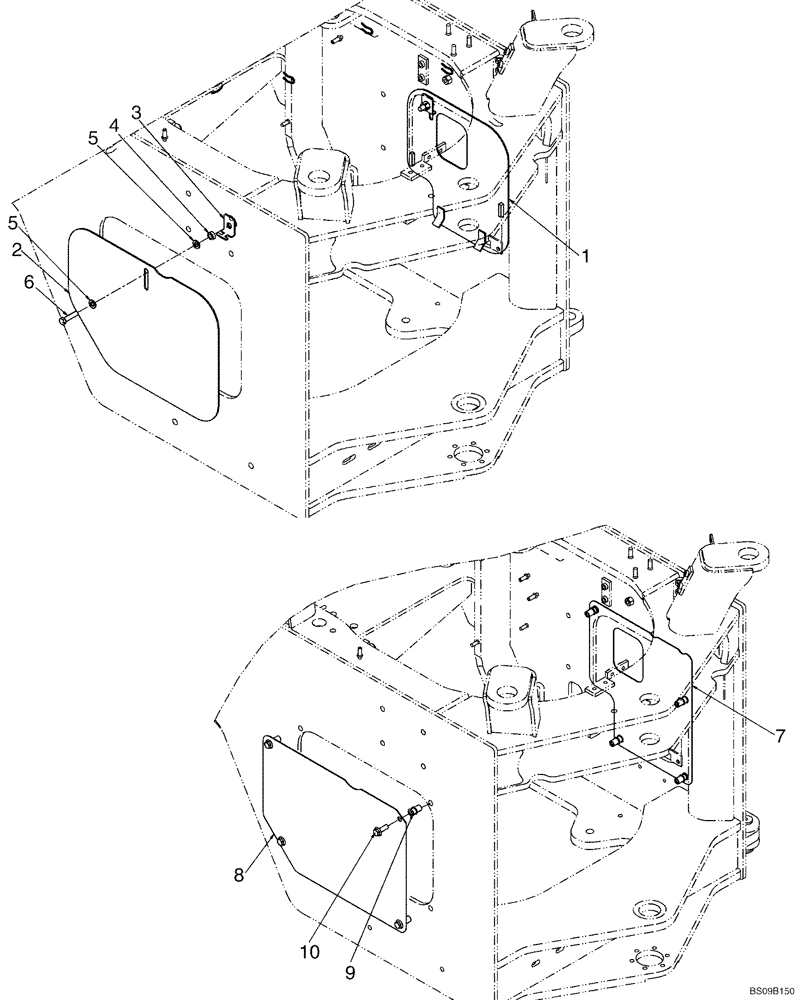

Запчасти Case 621E (09-29) - COVERS - FRAME, REAR (09) - CHASSIS

REF

INSTRUCTION

1-BOLT SIDE COVERS, Serial Range: -N9F206847

1шт.

1

87653634

COVER

Left Side, Serial Range: -N9F206847

1шт.

2

87600838

COVER

Right Side, Serial Range: -N9F206847

1шт.

3

87404138

CLAMP

Side Cover, Serial Range: -N9F206847

2шт.

4

D35859

SPACER

, Serial Range: -N9F206847

2шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

, Serial Range: -N9F206847

4шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

, Serial Range: -N9F206847

2шт.

REF

INSTRUCTION

4-BOLT SIDE COVERS, Start Serial: N9F206848

1шт.

7

84139975

COVER

COVER, LH Rear, Start Serial: N9F206848

1шт.

8

84274982

COVER

COVER, RH Rear, Start Serial: N9F206848

1шт.

9

84139978

NUT,M12 x 1.75

INSERT, Threaded, Start Serial: N9F206848

8шт.

10

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

, Start Serial: N9F206848

8шт.
