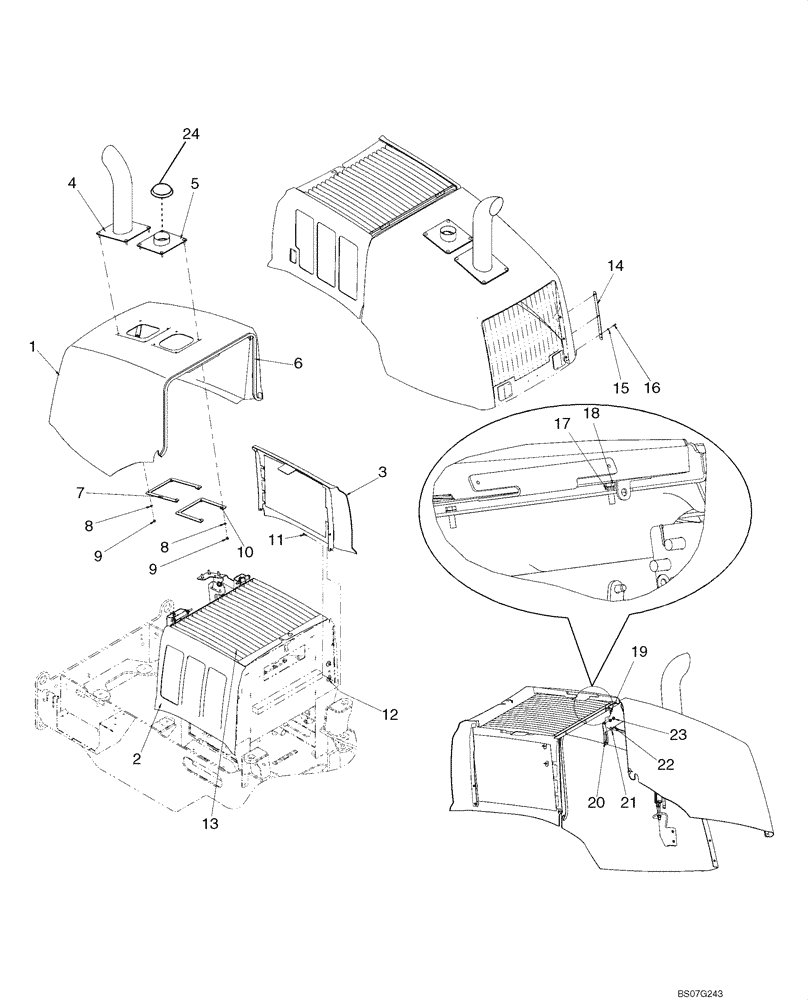

Запчасти Case 621E (09-25) - HOOD (09) - CHASSIS

REF

INSTRUCTION

ENGINE HOOD, FOR GRILLE AND REAR LIGHTS, SEE FIGURE 04-20

1шт.

1

87432252

HOOD

Tan

1шт.

2

87308682

PANEL

RH Hood; Tan; Standard Models

1шт.

2

84128671

ENGINE HOOD PANEL

PANEL; RH Hood; Tan; Commodity King Models

1шт.

3

87308668

PANEL

LH Hood; Tan; Standard Models

1шт.

3

84128669

ENGINE HOOD PANEL

PANEL, LH Hood; Tan; Commodity King Models

1шт.

4

8500375

EXHAUST SYSTEM PIPE

1шт.

5

8500379

AIR INTAKE

Intake

1шт.

6

8605846

RUBBER SEAL,2385mm L

Hood

1шт.

7

408196A1

PLATE

1шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

10

8500382

PLATE

1шт.

11

87632741

STEP BOLT,M8 x 16mm, Cl 12.9

6шт.

12

495-81144

WASHER,0.41" ID x 1.75" OD x 0.06" Thk

6шт.

13

87308388

SCREEN

Top

1шт.

14

444931A1

PLATE

2шт.

15

892-11006

LOCK WASHER,M6

6шт.

16

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

17

892-11008

LOCK WASHER,8mm ID

3шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

19

733-3220

COTTER PIN,M3.2 x 20

3шт.

20

8602476

PROP

1шт.

21

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

22

832-10406

NUT,M6 x 1, Cl 8

1шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

24

8501036

CAP

Rain

1шт.
