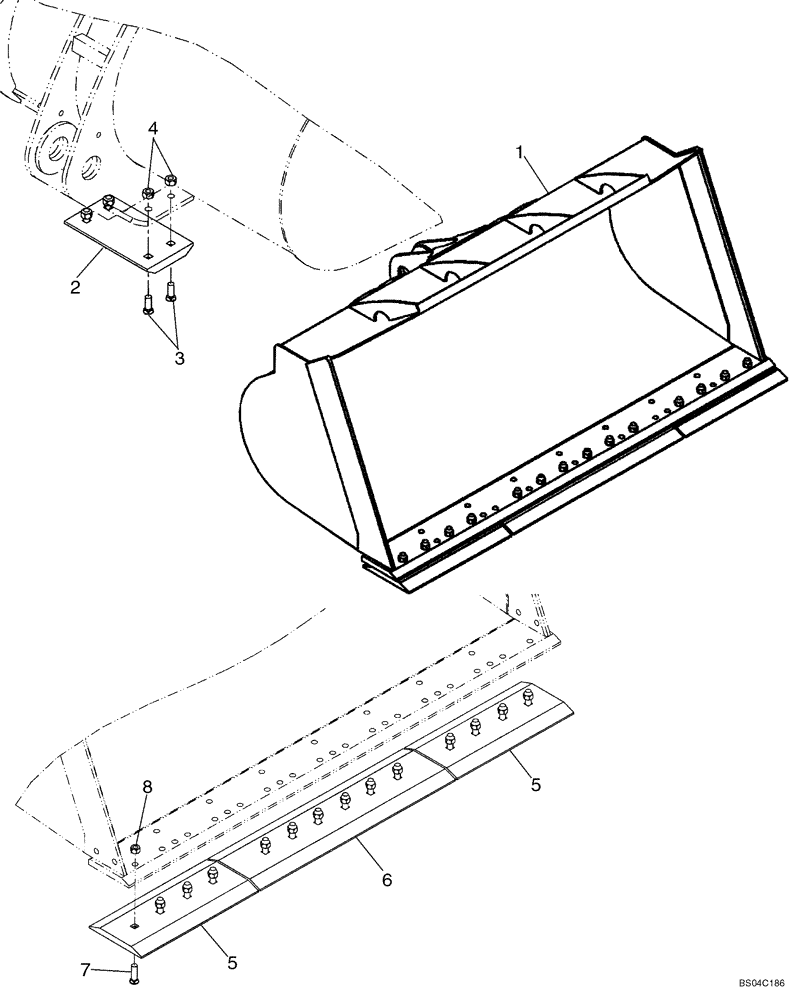

Запчасти Case 621E (09-20) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS (09) - CHASSIS

REF

INSTRUCTION

WELDED ON BUCKET COMPONENTS ARE NOT SERVICED SEPARATELY

1шт.

1

REF

INSTRUCTION

BUCKET/A, 428432A1; 1.9 Cubic Meter ( 2.5 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8

1шт.

1

REF

INSTRUCTION

BUCKET/A, 428434A1; 2 Cubic Meter ( 2.75 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8

1шт.

1

REF

INSTRUCTION

BUCKET/A, 428437A1; 2.25 Cubic Meter ( 3 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8

1шт.

1a

REF

INSTRUCTION

BUCKET/A, 418470A1; 1.9 Cubic Meter ( 2.5 Cubic Yards ); For Use With ACS Couplers; Order From Whole Goods; Inc. 2 - 8

1шт.

1a

REF

INSTRUCTION

BUCKET/A, 418472A1; 2.25 Cubic Meter ( 3 Cubic Yards ); For Use With ACS Couplers; Order From Whole Goods; Incl. 2 - 8; Not Illustrated

1шт.

1a

REF

INSTRUCTION

BUCKET/A, 434536A1; 1.9 Cubic Meter ( 2.5 Cubic Yards ); For Use With JRB Couplers; Order From Whole Goods; Incl. 2 - 8; Not Illustrated

1шт.

1a

REF

INSTRUCTION

BUCKET/A, 87728745; 1.9 Cubic Meter ( 2.5 Cubic Yards ); For Use With CNH Couplers; Order From Whole Goods; Incl. 2 - 8; Not Illustrated

1шт.

1a

REF

INSTRUCTION

BUCKET/A, 84201774; 3.44 Cubic Meter ( 4.5 Cubic Yards)

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

360939A1

PLATE

Bottom; Bolt On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

REF

INSTRUCTION

BOLT ON CUTTING EDGES

1шт.

5

372082A2

EDGE, CUTTING

Outer; Bolt On

2шт.

6

372081A1

CUTTING EDGE,Bolt On, Double Edged, 6 Hole, 254mm W x 1324mm L

Center; Bolt On

1шт.

7

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

16шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

16шт.
