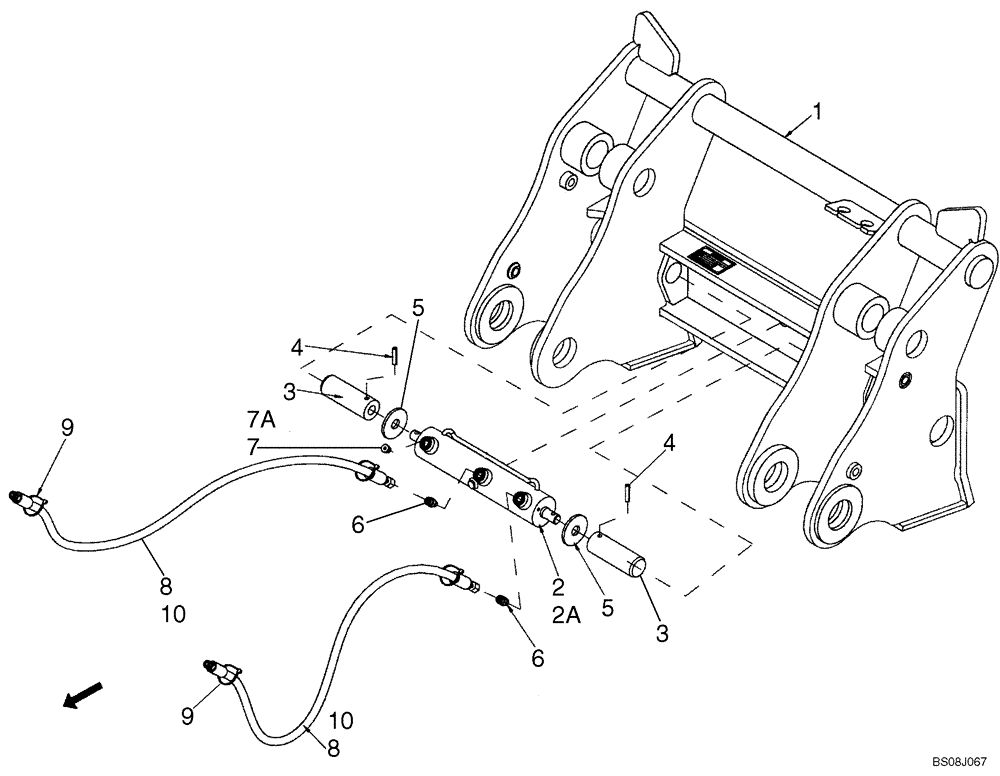

Запчасти Case 621E (09-18) - COUPLER, HYDRAULIC - XT - CNH (09) - CHASSIS

1

87736639

FRAME

COUPLER, XT

1шт.

2

84139131

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 206.5mm Stroke

Coupler Hydraulic; Incl. Ref. 2A

1шт.

2a

87741101

SEAL KIT

Hydraulic Cylinder

1шт.

3

87736653

SPECIAL PIN,50.8mm OD x 145.57mm L

Pin

2шт.

4

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

5

87741104

INDICATOR

Coupler, Red

2шт.

6

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

2шт.

7

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. Ref. 7A

1шт.

7a

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

8

87741102

HOSE ASSY.

XT Coupler; 1295 mm (50 - 63/64 in)

2шт.

9

86566989

CABLE TIE,208mm L

CABLE STRAP

4шт.

10

87497870

PROTECTIVE SLEEVE

2шт.
