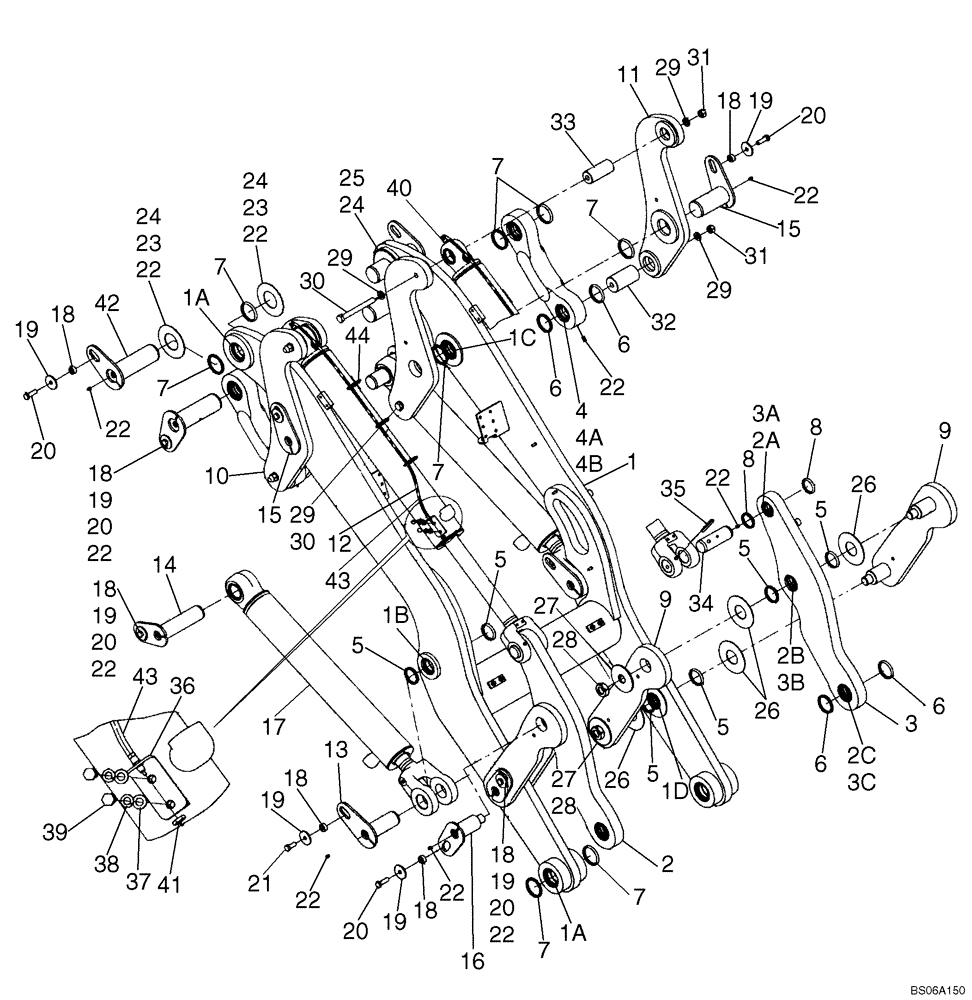

Запчасти Case 621E (09-09) - FRAME - LOADER LIFT (XT) (09) - CHASSIS

REF

INSTRUCTION

XT LOADER

1шт.

1

87344091

ARM/LIFTING DEVICE

Lift XT; Incl. Refs. 1A -1D

1шт.

1a

87613445

BUSHING,76.52mm ID x 89.99mm OD x 58mm L

Lift Arm

6шт.

1b

87613439

BUSHING,63.8mm ID x 76.31mm OD x 58mm L

Lift, Arm Pivot

2шт.

1c

87613442

BUSHING

Lift Arm

2шт.

1d

87613443

BUSHING

Lift Arm

2шт.

2

87452370

LINKAGE

Dump XT; Incl. Refs. 2A - 2C

1шт.

2a

369432A2

BUSHING

Dump Link

1шт.

2b

379191A2

BUSHING

Lift Arm

1шт.

2c

87441882

BUSHING

Dump Link

1шт.

3

87310653

LINK

LINKAGE, Dump XT; Incl. Refs. 3A - 3C

1шт.

3a

87613427

BUSHING,57.46mm ID x 69.96mm OD x 34mm L

Dump Link

1шт.

3b

87613432

BUSHING,63.81mm ID x 76.31mm OD x 34mm L

Lift Arm

1шт.

3c

87617016

BUSHING

Dump Link

1шт.

4

87445353

LINKAGE

Anchor XT; Incl. Refs. 4A, 4B

2шт.

4a

87613435

BUSHING,70.16mm ID x 82.66mm OD x 48mm L

Anchor Link

1шт.

4b

87613431

BUSHING,76.55mm ID x 89.99mm OD x 45mm L

Lift Arm

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Rod; 63.5

12шт.

6

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Rod; 69.8

8шт.

7

D95148

WIPER SEAL

Rod; 76.2

16шт.

8

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

Rod; 57.125

4шт.

9

87445354

LINKAGE

Guide XT

4шт.

10

87344111

LINKAGE

Bellcrank; Right Hand

2шт.

11

87344104

LINKAGE

Bellcrank; Left Hand

2шт.

12

87442555

BUCKET CYLINDER,Double Acting, 63.5mm Rod, 819.9mm Stroke

114 ID x 819.9 mm strk; Bucket Tilt; See Figure 08-18

2шт.

87442555R

REMAN-HYD CYLINDER

621E WHEEL LOADER TIER 3 (NA) (8/07-)

2шт.

87442555C

CORE-HYD CYLINDER

Return Number

1шт.

13

361133A2

PIN ASSY.

Lift Arm Pivot; Rod End; Case Power Tan

2шт.

14

361128A1

PIN

Lift Arm Pivot; Head End; Case Power Tan

2шт.

15

379070A2

PIVOT PIN,76.2mm OD x 170.5mm L

Bellcrank Pivot; Case Power Tan

2шт.

16

379197A2

PIN,63.5mm OD x 158.1mm L

Guide Link Pivot; CNH CE Gray

2шт.

17

87577649

LIFT CYLINDER

120.65 mm ID x 787.6 mm strk; Lift; See Figure 08-15

2шт.

87577650R

REMAN-HYD CYLINDER

621E Tier 3 (8/07-), Reman for New P/N 87577649

2шт.

87577650C

CORE-HYD CYLINDER

Return Number

1шт.

18

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

19

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

20

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

21

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

23

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

77.6 ID 3.5thk

1шт.

24

441822A1

WASHER

77.6 ID 1.6thk

1шт.

25

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

Lift Arm

1шт.

26

116893A1

WASHER,65mm ID x 152mm OD x 3.5mm Thk

8шт.

27

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

4шт.

28

131-53

NUT,1 1/2"-12

4шт.

29

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

30

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

31

829-1420

NUT,M20, Cl 10

4шт.

32

8500311

PIN,69.85mm OD x 130.65mm L

Bellcrank; Anchor Side

2шт.

33

368775A1

PIN

Bellcrank; Cylinder Side

2шт.

34

368836A2

PIN,57.15mm OD x 165mm L

Tilt Cylinder

2шт.

35

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

36

87441374

BRACKET

Grease Hose

2шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

38

892-11010

LOCK WASHER,M10

4шт.

39

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

40

328082A1

ELBOW

1/8 PT

2шт.

41

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

42

87441342

HEADED PIN,76.2mm OD x 253.5mm L

Lift Arm Pivot; Case Power Tan

4шт.

43

87444057

FLEXIBLE HOSE

Grease

2шт.

44

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.
