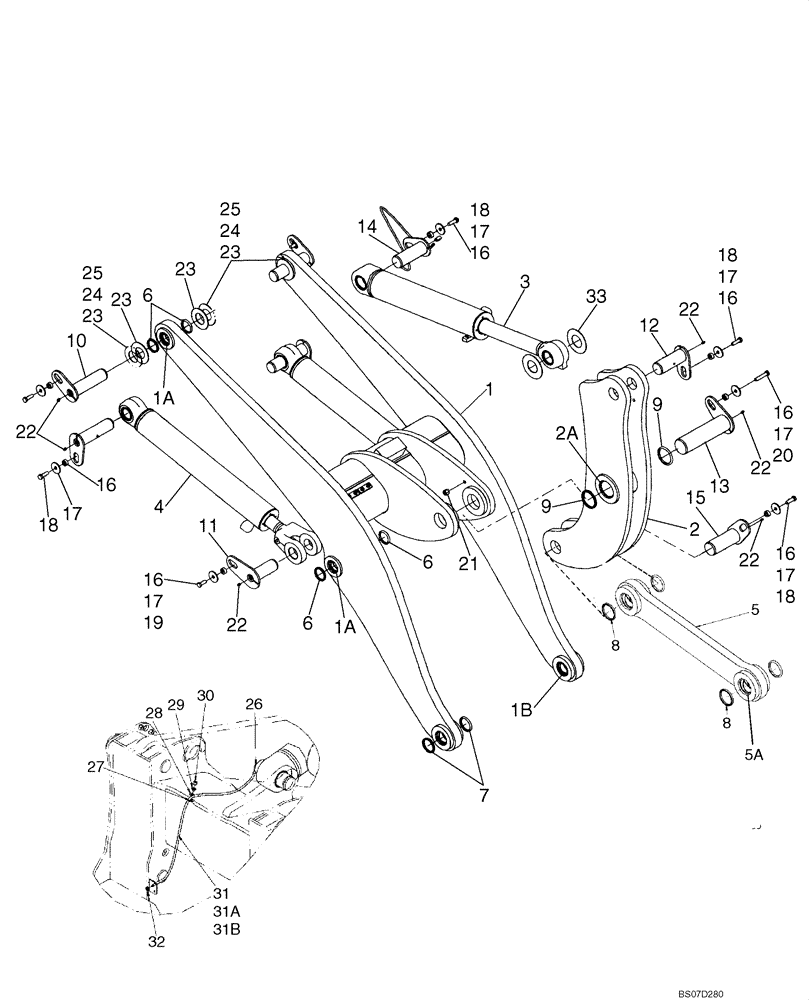

Запчасти Case 621E (09-07) - FRAME - LOADER LIFT (Z-BAR) (09) - CHASSIS

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

84174964

ARM, LIFT, Loader Lift; Incl. Refs. 1A - 1B; Replaces 87343733, 87475244

1шт.

1a

87613439

BUSHING,63.8mm ID x 76.31mm OD x 58mm L

Lift Arm

4шт.

1b

87613444

BUSHING,70.16mm ID x 82.66mm OD x 78mm L

Dump Link

2шт.

2

87330150

BELLCRANK

Incl. Ref. 2A

1шт.

2a

87613429

BUSHING,89.21mm ID x 104.88mm OD x 81.9mm L

Bellcrank

2шт.

3

87366688

CYLINDER ASSY.

127 ID x 620 mm strk; Bucket Tilt; See Figure 08-16

1шт.

87366689R

REMAN-HYD CYLINDER

621E TIER 3 ( 8/07 - ), Reman for new P/N 87366688

1шт.

87366689C

CORE-HYD CYLINDER

Return Number

1шт.

4

87577649

LIFT CYLINDER

120.65 mm ID x 787.6 mm strk; Lift; See Figure 08-15

2шт.

87577650R

REMAN-HYD CYLINDER

621E Tier 3 (8/07-), Reman for New P/N 87577649

2шт.

87577650C

CORE-HYD CYLINDER

Return Number

1шт.

5

87395399

LINK

Dump; Incl. Ref. 5A

1шт.

5a

87613430

BUSHING,76.52mm ID x 89.99mm OD x 79mm L

Dump Link

2шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

63.5 ID

8шт.

7

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

69.8 ID

4шт.

8

D95148

WIPER SEAL

76.2 ID

4шт.

9

S92653

WIPER

88.9 ID

2шт.

10

361128A1

PIN

Lift Arm Pivot Head; Tan

4шт.

11

361133A2

PIN ASSY.

Lift Arm Pivot Rod; Tan

2шт.

12

361139A2

PIN ASSY.,69.8mm OD x 182mm L

Dump Link Pivot; Tan

1шт.

12

411006A2

PIN ASSY.

Dump Link Pivot; Tan; Heavy Duty, Chrome Plate

1шт.

13

375328A1

PIN ASSY.

Bellcrank Pivot; Tan

1шт.

14

375330A1

PIN ASSY.,69.85mm OD x 201.5mm L

Tilt Cylinder Pivot; Tan

1шт.

15

375326A2

PIN ASSY.,76.2mm OD x 184mm L

Dump Link Pivot; Tan

1шт.

15

411013A2

PIN ASSY.

Dump Link Pivot; Tan; Heavy Duty, Chrome Plate

1шт.

16

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

10шт.

17

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

18

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.

19

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

20

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

21

832-10416

NUT,M16 x 2, Cl 8

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

23

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

64.9 ID; 3.5 THK; Hardened

1шт.

24

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

64.9 ID; 1.6 THK; Hardened

1шт.

25

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

64.9 ID; 2.5 THK; Hardened

1шт.

26

328082A1

ELBOW

1/8 PT

1шт.

27

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

28

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

31

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in); Incl. Refs. 31A, 31B

1шт.

31a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

31b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

32

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

33

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71,3 ID; 2.5 THK

2шт.
