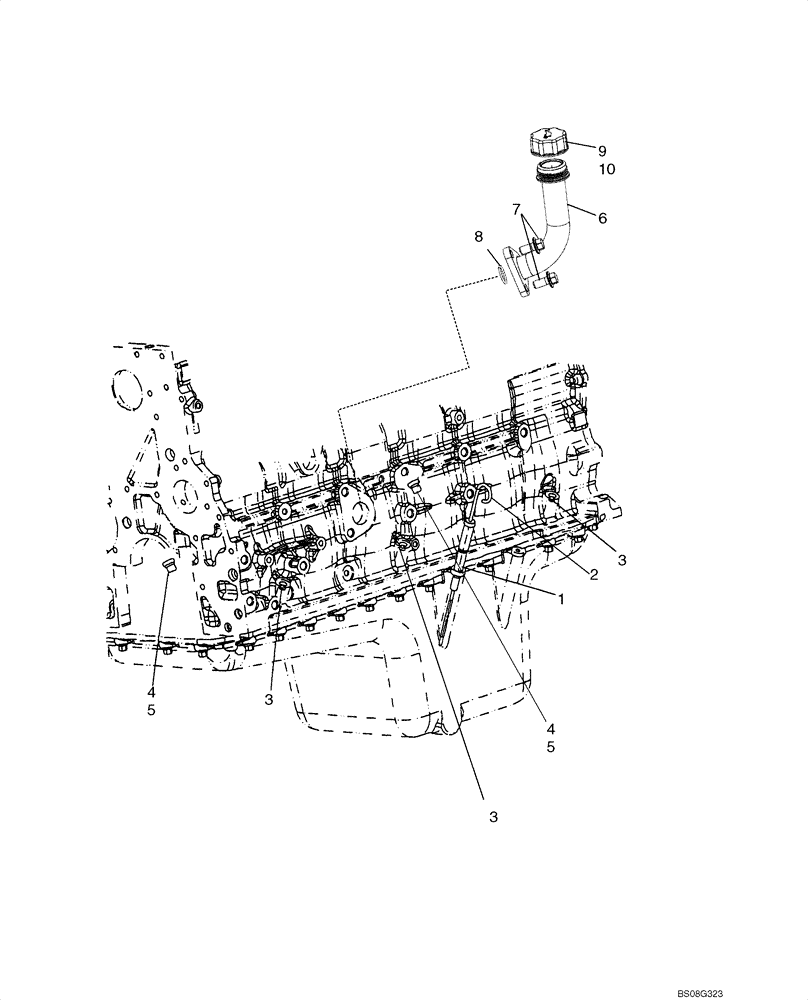

Запчасти Case 621E (02-09) - OIL FILL, ENGINE (02) - ENGINE

2852463

DIPSTICK

ASSY. Incl. Refs. 1, 2

1шт.

1

2852122

TUBE,81 mm Length

Dipstick

1шт.

2

2852464

DIPSTICK

Engine Oil

1шт.

3

4899036

PLUG

Expansion

3шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy, Incl. Ref. 5

4шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

2853407

NECK FILLER,143, 117.3 mm Length

1шт.

7

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

8

2852135

O-RING,2.6mm Thk x 37.7mm ID

1шт.

9

2853410

FILLER CAP,Female

Assy, Incl. Ref. 10

1шт.

10

2853412

O-RING,0.21" Thk x 1.475" ID

1шт.
