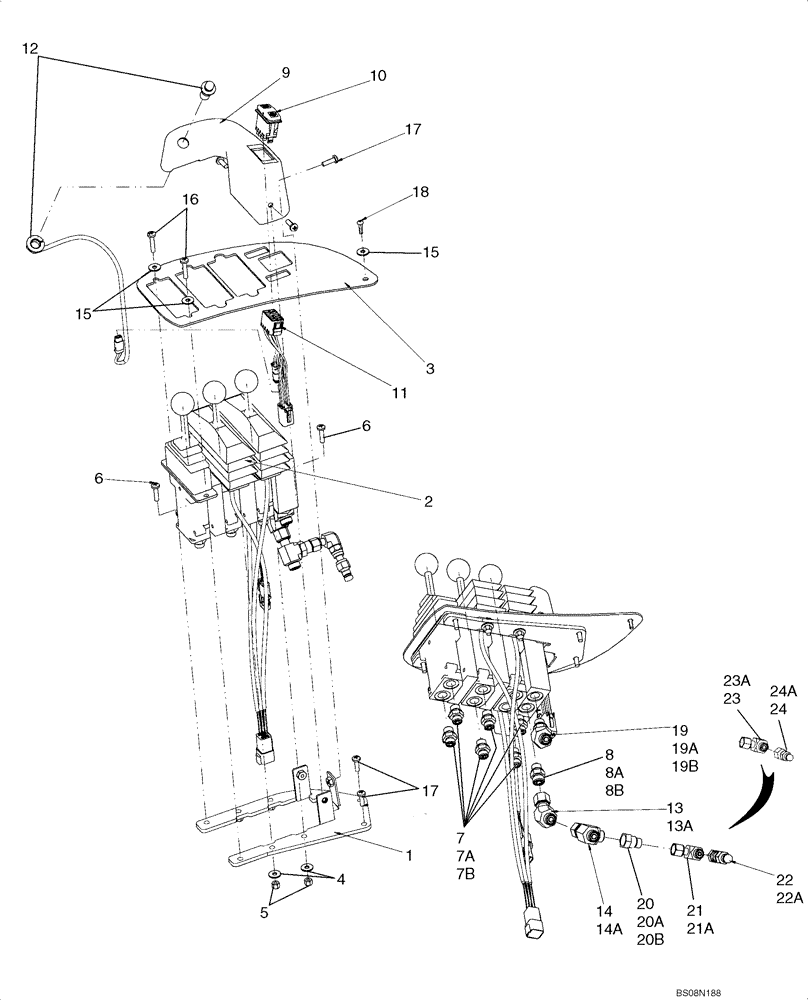

Запчасти Case 621E (08-32) - LOADER CONTROL - THREE LEVER MOUNTING (08) - HYDRAULICS

1

87534053

BRACKET

Controller

1шт.

2

407869A2

VALVE, CONTROL

3 Lever Loader Control; See Figure 08-32A

1шт.

3

87515559

BEZEL

3 Lever Loader Control

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

7

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 7A, 7B

6шт.

7a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 8A, 8B

1шт.

8a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

8b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

9

87523729

COVER

Switch

1шт.

10

400833A2

SWITCH

F-N-R

1шт.

11

87324389

WIRE HARNESS

F-N-R Switch

1шт.

12

402390A1

SWITCH

ASSY. Downshift

1шт.

13

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl. Refs. 13A

1шт.

13a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

14

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Refs. 14A

1шт.

14a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

15

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

16

540-711

SCREW,Cross Pan Hd, M6 x 30

2шт.

17

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

5шт.

19

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 19A, 19B

1шт.

18

87582901

SELF-TAP SCREW,Pan, #10 - 16 x 3/4"

1шт.

19a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

19b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Incl. Refs. 20A, 20B; If Used

1шт.

20a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

20b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. Refs. 21A; If Used

1шт.

21a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

22

190117A1

COUPLING

Incl. Refs. 22A, Used With Ref. 20 Reducer and Ref. 21 Elbow

1шт.

22a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

23

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 23A; If Used

1шт.

23a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

24

190119A1

COUPLING

Diagnostic; Incl. Ref. 24A; Used With Ref. 23 Elbow

1шт.

24a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.
