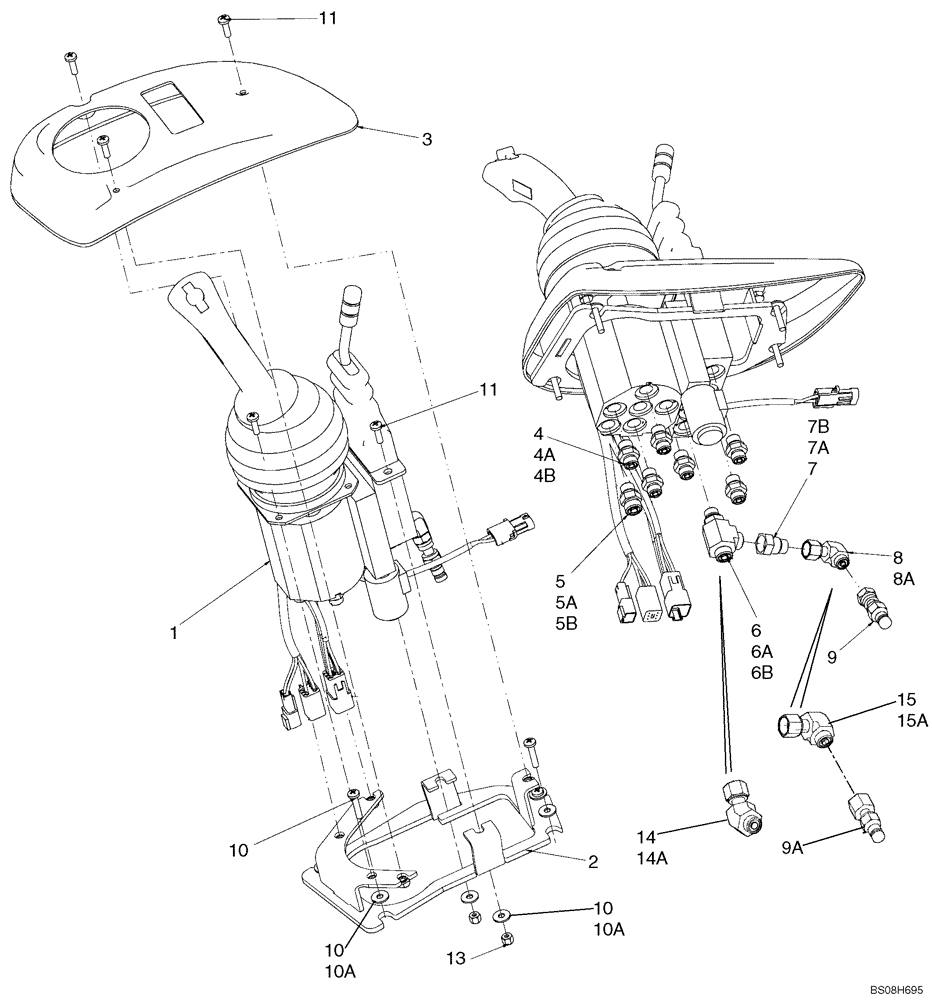

Запчасти Case 621E (08-30) - LOADER CONTROL - JOYSTICK WITH SINGLE LEVER MOUNTING (08) - HYDRAULICS

1

87340017

JOYSTICK

With One Lever; See Figure 08-29A, 08-29B, 08-30A

1шт.

2

87516506

ADAPTER

Joystick Controller

1шт.

3

87638911

BEZEL

1шт.

4

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 4A, 4B

6шт.

4a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 5A, 5B

1шт.

5a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 6A, 6B

1шт.

6a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

6b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Incl. Refs. 7A, 7B; If Used

1шт.

7a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

7b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

8

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. Ref. 8A; If Used

1шт.

8a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

9

190117A1

COUPLING

Diagnostic, If Used

1шт.

9a

190119A1

COUPLING

Diagnostic, If Used

1шт.

10

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2-6шт.

10a

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

If Used

4шт.

11

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

7шт.

12

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

13

832-10406

NUT,M6 x 1, Cl 8

2шт.

14

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl. Ref. 14A; If Used

1шт.

14a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 15A; If Used

1шт.

15a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
