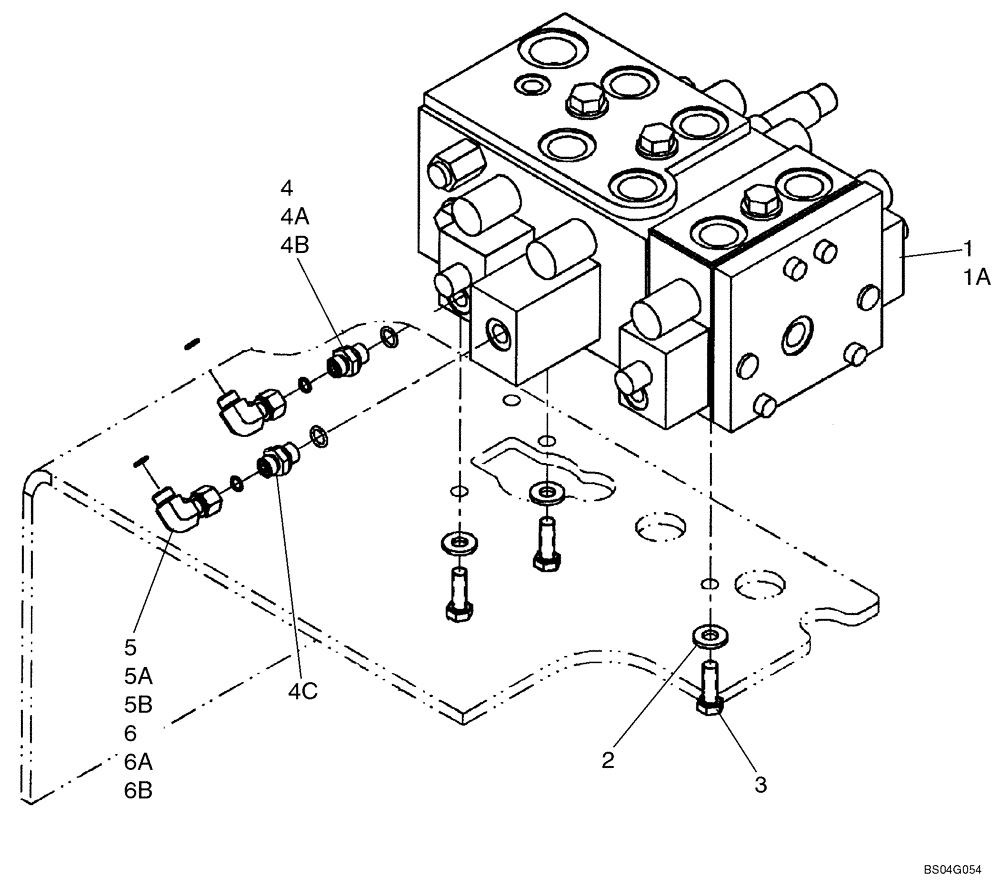

Запчасти Case 621E (08-26A) - VALVE, CONTROL - MOUNTING, THREE SPOOL - (Z-BAR/XR/XT) (08) - HYDRAULICS

REF

INSTRUCTION

THREE SPOOL VALVE MOUNTING

1шт.

1

87307983

HYDRAULIC VALVE

Z-Bar/XR Loader, See Fig 08-27 - 08-27B

1шт.

1

87307983R

REMAN-HYD VALVE

Reman Valve - Z-Bar/XR Loader, See Fig 08-27 - 08-27B

1шт.

1

87307983C

CORE-VALVE HYD

Return Number

1шт.

1a

87680516

HYDRAULIC VALVE

VALVE, HYDRAULIC, XT Loader, See Fig 08-28 - 08-28B

1шт.

2

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

4

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 4A, 4B

1-2шт.

4a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4c

REF

INSTRUCTION

NOT USED IN THIS APPLICATION FOR XT MODELS

1шт.

5

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. 5A; Used on Z-Bar Loader

1-2шт.

5a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

6

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 6A, 6B; Used On XT Loader

1шт.

6a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
