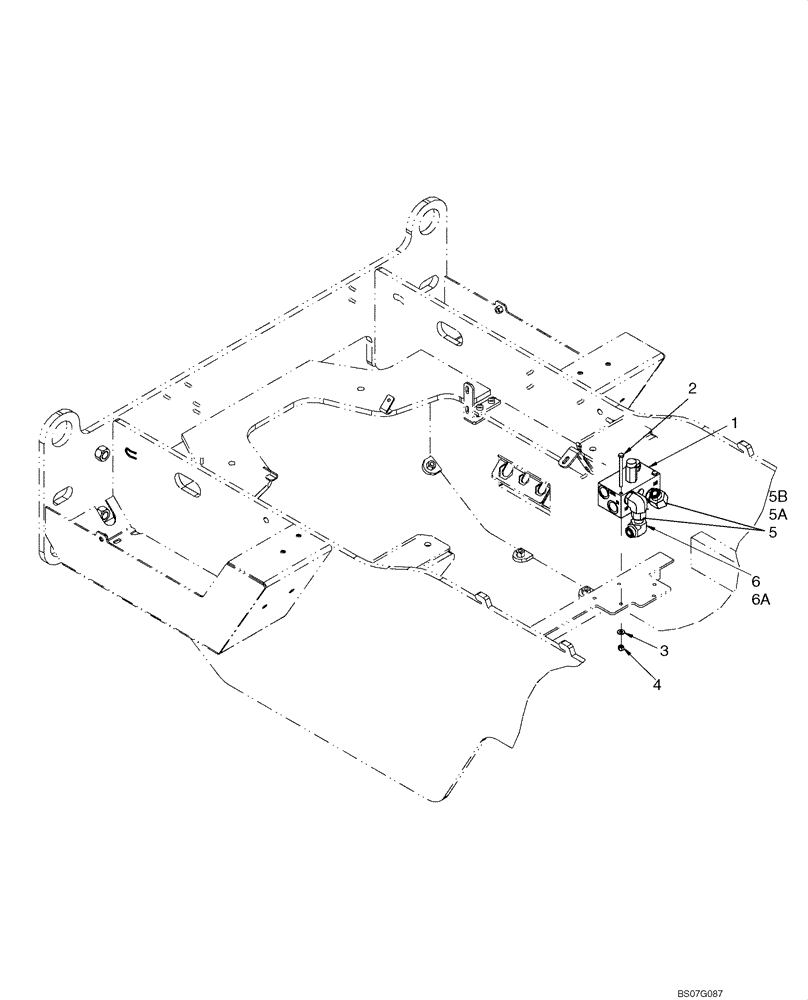

Запчасти Case 621E (08-23) - VALVE, FAN RELIEF - MOUNTING (08) - HYDRAULICS

REF

INSTRUCTION

FAN RELIEF VALVE MOUNTING

1шт.

1

8500562

HYDRAULIC VALVE

Fan Relief; See Figure 08-23A

1шт.

2

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 5A, 5B

2шт.

5a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

5b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face End

1шт.

6

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. 6A

1шт.

6a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.
