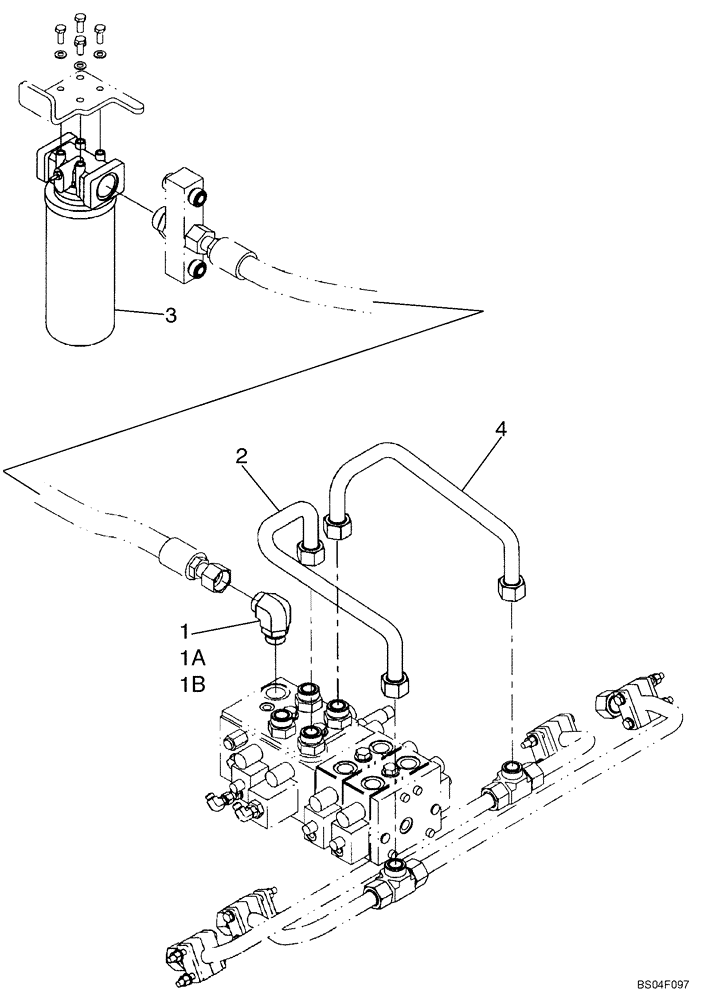

Запчасти Case 621E (08-21) - HYDRAULICS - NON- RIDE CONTROL (08) - HYDRAULICS

REF

INSTRUCTION

NO RIDE CONTROL - VALVE TO FILTER

1шт.

1

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 1A, 1B

1шт.

1a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

1b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2

87389244

HYD TUBE,19.4mm ID x 25.40mm OD x 252mm, 150 mm L

Head

1шт.

3

87308928

FILTER ASSY

Without Reverse Flow; See Figure 08-02A

1шт.

4

8606096

TUBE,25.40mm OD

Rod

1шт.
