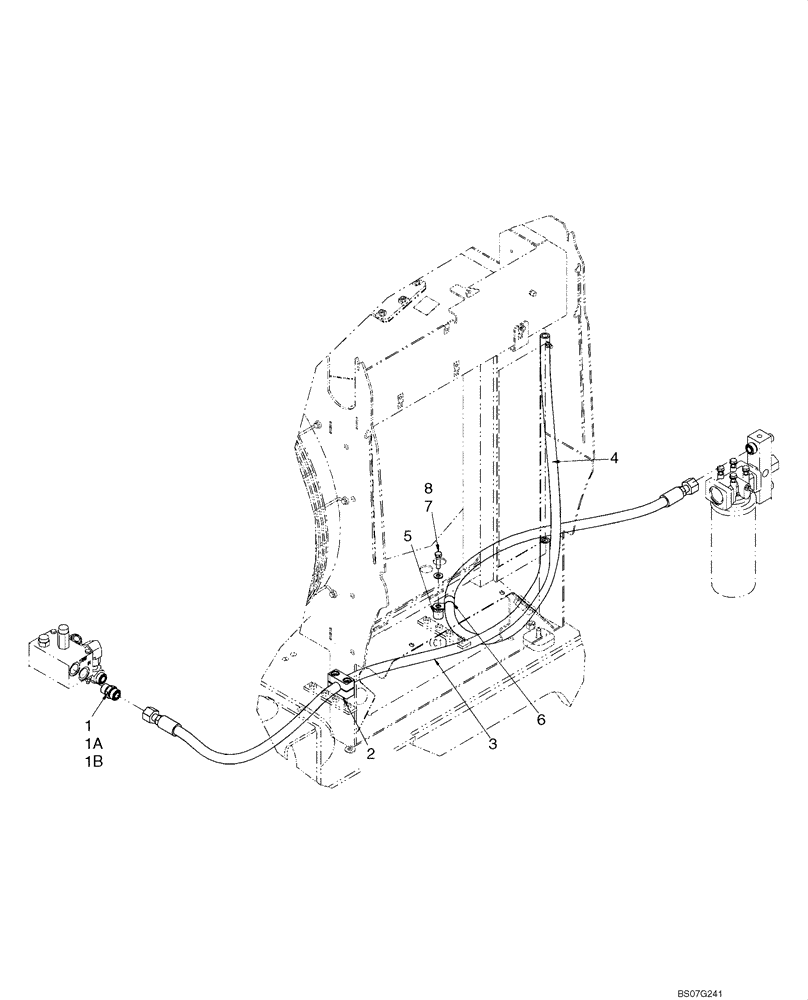

Запчасти Case 621E (08-19A) - HYDRAULICS - COOLER WITHOUT BYPASS (08) - HYDRAULICS

REF

INSTRUCTION

FAN VALVE TO COOLER AND COOLER RETURN HOSES, WITHOUT BYPASS

1шт.

1

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 1A, 1B

1шт.

1a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

1b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2

367489A1

BLOCK

1шт.

3

87362190

HOSE ASSY.

Fan Valve to Cooler; 1530 mm (60 1/4 in)

1шт.

4

8501321

FLEXIBLE HOSE

Cooler Return; 2102 mm (82 - 3/4 in)

1шт.

5

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

1шт.

6

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

8

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.
