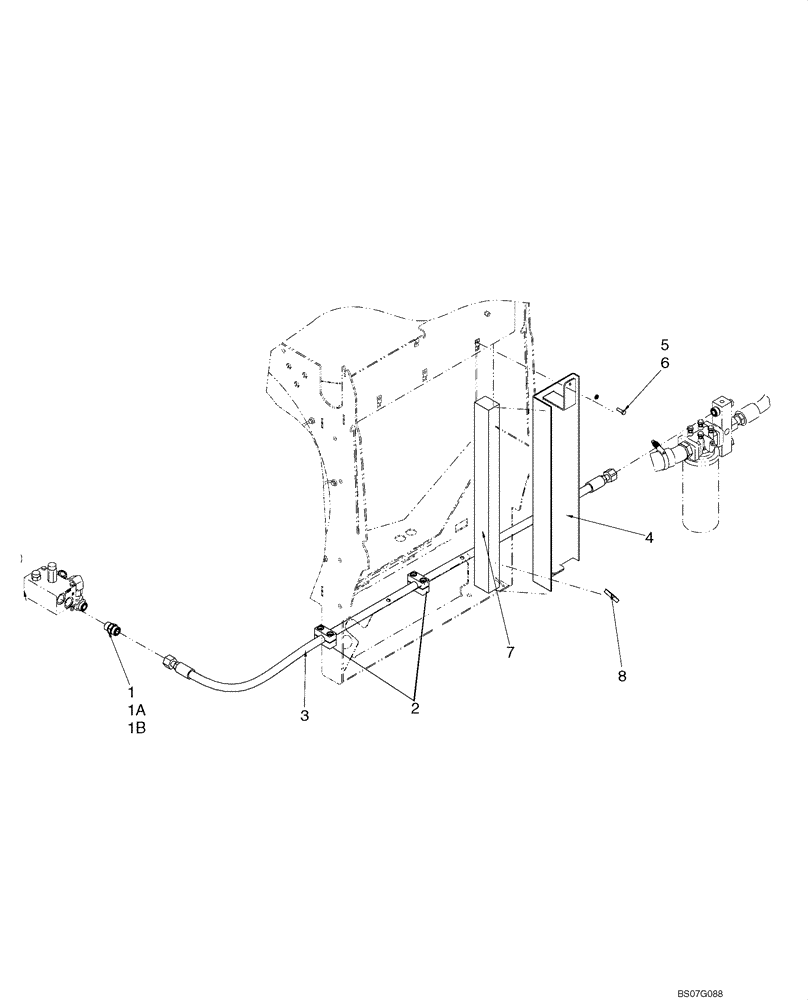

Запчасти Case 621E (08-19) - HYDRAULICS - STANDARD BYPASS (08) - HYDRAULICS

1

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 1A, 1B

1шт.

1a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

1b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2

367489A1

BLOCK

2шт.

3

87559567

HOSE

Cooler Bypass, 1902 mm (74 - 7/8 in)

1шт.

4

8501329

MOUNTING PLATE

1шт.

5

892-11008

LOCK WASHER,8mm ID

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

7

8500206

SEALING STRIP,65mm W x 734mm L x 50mm Thk

1шт.

8

353-414

PLUG,Dome, 1.375" Hole, Nylon

2шт.
