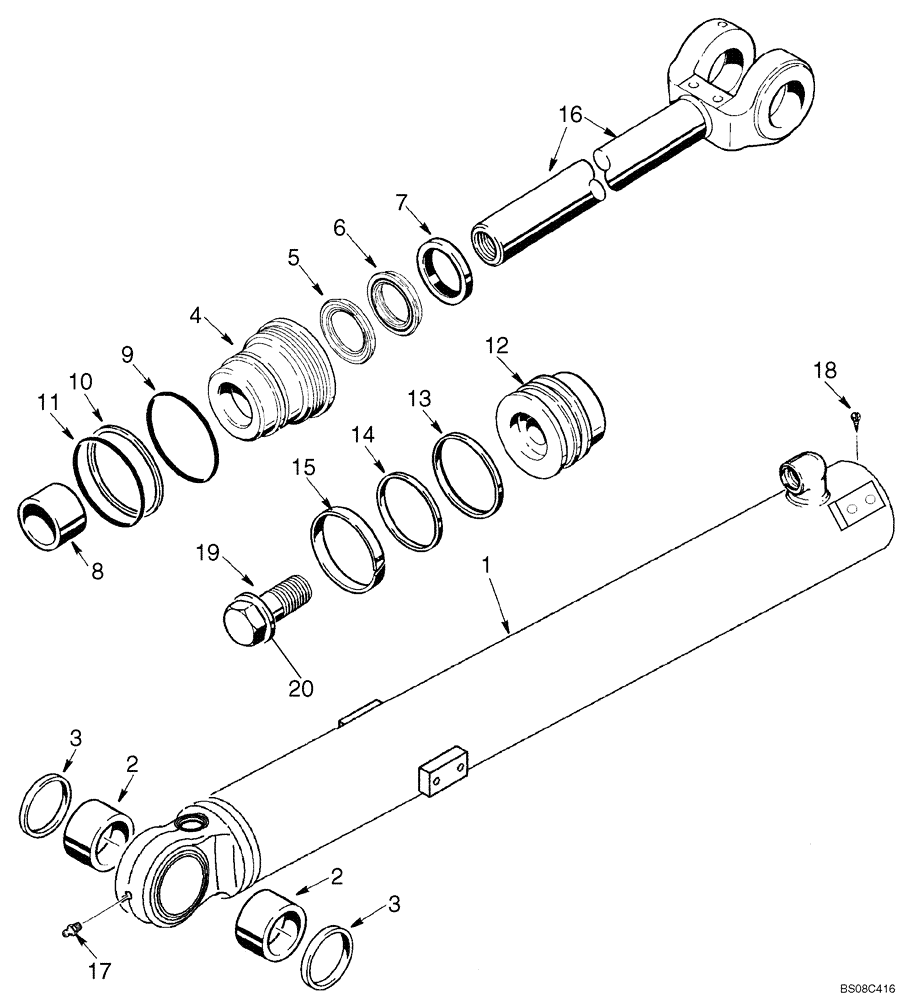

Запчасти Case 621E (08-18) - CYLINDER ASSY - LOADER BUCKET (XT LOADER) (08) - HYDRAULICS

87442555

BUCKET CYLINDER,Double Acting, 63.5mm Rod, 819.9mm Stroke

XT Tilt; 114 ID x 819.9 mm strk; Incl. 1 - 20

2шт.

87442555R

REMAN-HYD CYLINDER

621E WHEEL LOADER TIER 3 (NA) (8/07-)

2шт.

87442555C

CORE-HYD CYLINDER

Return Number

1шт.

360982A1

SEAL KIT

SEALS, XT Bucket Cylinder; Incl. Refs. 5 - 11, 13, 15, Also Incl. 361000A1 Expandable Seal Ring For Service Replacement Of Ref. 14 Piston Seal

1шт.

1

87442557

TUBE,114.15 mm DIA x 1061.3 mm L

Incl. Ref. 2

1шт.

2

87625614

BUSHING,57.44mm ID x 69.95mm OD x 20mm L

2шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

336379A1

GLAND

Cylinder; Incl. Refs. 4 - 11

1шт.

4

336378A1

GLAND

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Incl. Refs. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

8

336041A1

BUSHING

1шт.

9

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

10

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

Backup

1шт.

11

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

341971A1

PISTON

Incl. Refs. 12 - 15

1шт.

12

341968A1

PISTON

1шт.

13

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING Loader

1шт.

14

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

Piston

1шт.

15

336045A1

RING

Wear

1шт.

16

87442559

ROD ASSY.

63.5 mm dia

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

19

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER

1шт.
