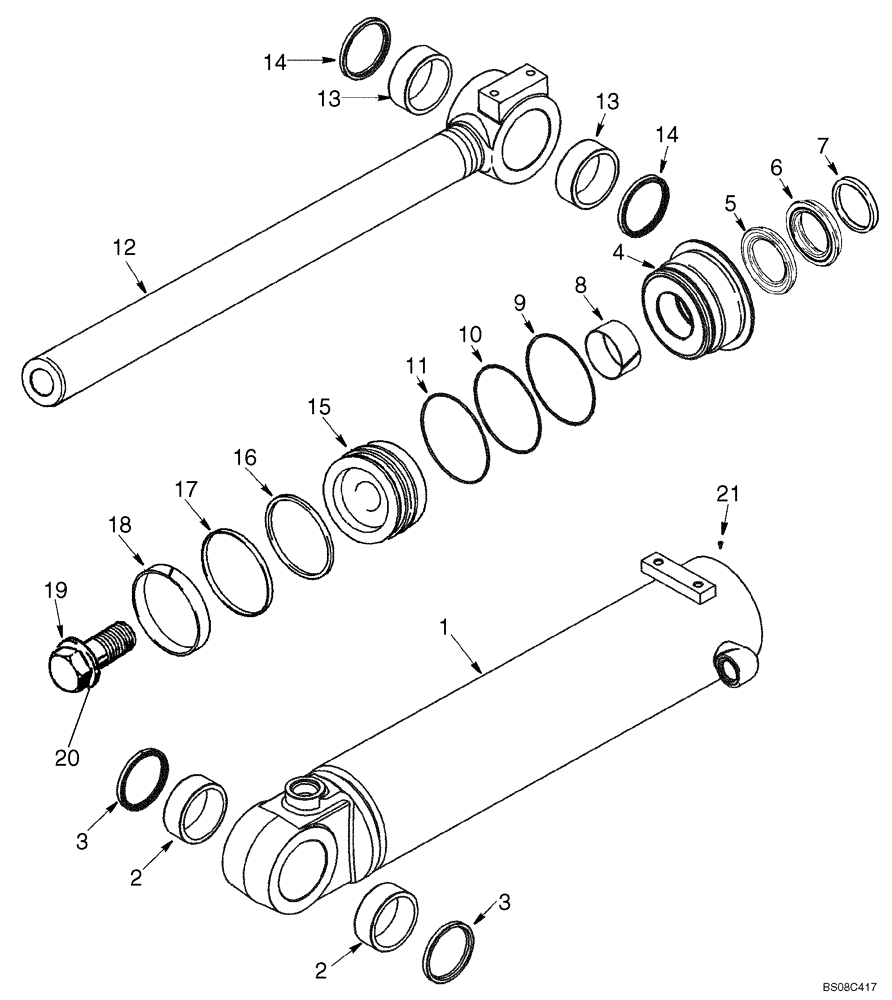

Запчасти Case 621E (08-16) - CYLINDER ASSY - LOADER BUCKET (Z BAR LOADER) (08) - HYDRAULICS

87366688

CYLINDER ASSY.

Z-Bar Tilt; 114 ID x 529 mm strk; Bucket; Incl. Refs. 1 - 21

1шт.

87366689R

REMAN-HYD CYLINDER

621E TIER 3 ( 8/07 - ),Reman for new P/N 87366688

1шт.

87366689C

CORE-HYD CYLINDER

Return Number

1шт.

87434293

SEAL KIT

Incl. Refs. 5 - 11, 16, 18, And 1986753C1 Expandable Seal For Service Replacement of Ref. 17 Piston Seal

1шт.

1

339525A1

BARREL,127mm Bore Dia

Incl. Ref. 2

1шт.

2

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

2шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

2шт.

339512A1

GLAND

Assembly; Incl. Refs. 4 - 11

1шт.

4

339511A1

GLAND

Packing

1шт.

1542881C1

SEAL KIT

Incl. Refs. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

7

D95148

WIPER SEAL

1шт.

8

336042A1

BUSHING

Bearing; Dia. 76.20

1шт.

9

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

11

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

12

339520A1

ROD ASSY.

76.2 Dia; Incl. Ref. 13

1шт.

13

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

2шт.

14

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

2шт.

339510A1

PISTON

Incl. Refs. 15 - 18

1шт.

15

339508A1

PISTON,126.33mm Bore, 76.31mm Rod, 72.4mm W

127.0 Dia Cylinder; 76.2 Dia Rod

1шт.

16

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

Loader, 127.0 Dia.

1шт.

17

336030A1

SEAL,123.8mm ID x 128.52mm OD x 6.96mm Thk

Piston, 127.0 Dia.

1шт.

18

336046A1

RING

Wear

1шт.

19

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
